IRQ-24/4.2-T110NVF-C
lmages are for reference only.IRQ-24/4.2-T110NVF-C
DC DC CONVERTER 24V 100W
Datasheet8-DIP Module, 1/4 Brick
48,831 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 4.2A 57.6V - 160V Input
IRQ-24/4.2-T110NVF-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | IRQ (100W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 57.6V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 100 W |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 88.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/4 Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | IRQ-24 |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
|
|

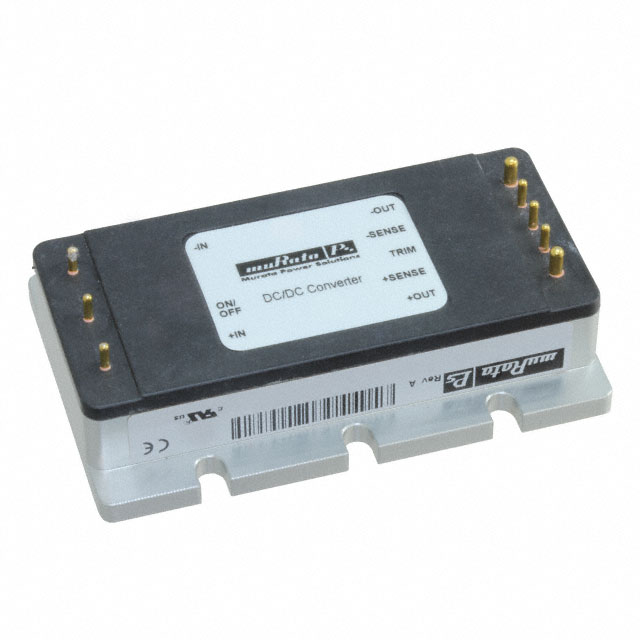

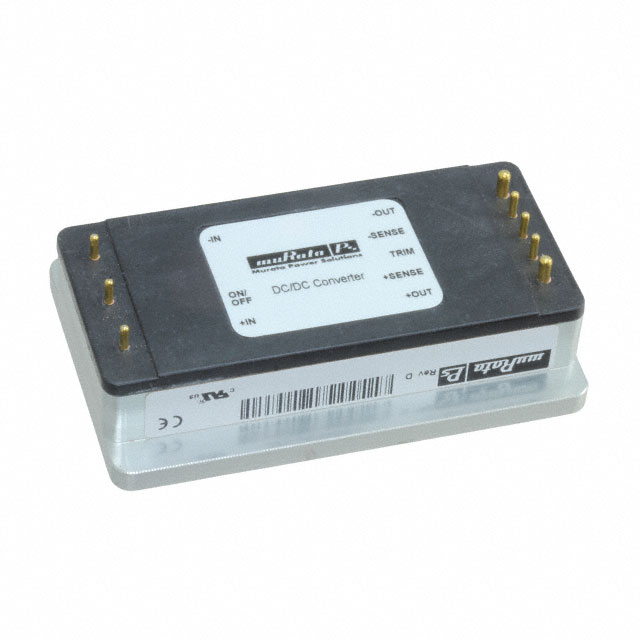

| Part Number | IRQ-24/4.2-T110N-C | IRQ-24/4.2-T110NF-C | IRQ-24/4.2-T110P-C | IRQ-24/4.2-T110PF-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 24V 100W | DC DC CONVERTER 24V 100W | DC DC CONVERTER 24V 100W | DC DC CONVERTER 24V 100W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tray | Tray |
