IRSM505-044PA

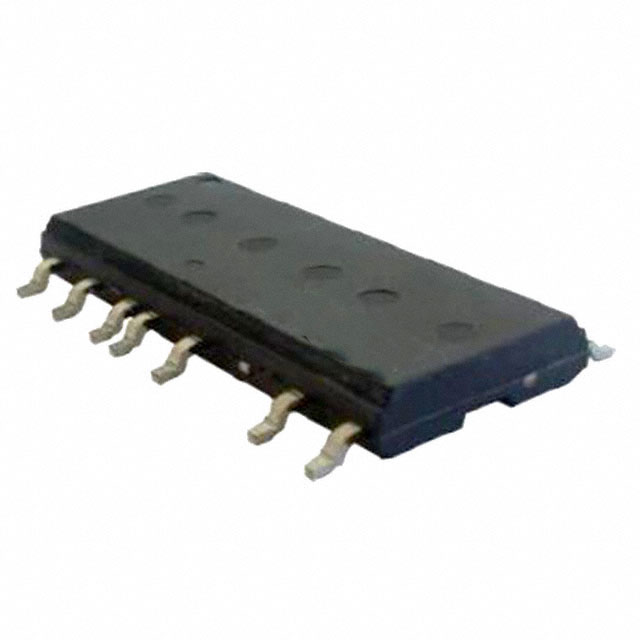

lmages are for reference only.IRSM505-044PA
IC HALF BRIDGE DRIVER 3A 23SOP
Datasheet32-PowerSMD Module, 23 Leads
10,436 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half Bridge (3) Driver AC Motors UMOS 23-SOP
IRSM505-044PA
| Category | Integrated Circuits (ICs) - Power Management PMIC - Full Half-Bridge H Bridge Drivers |
| Manufacturer | International Rectifier |
| Series | µIPM™-DIP |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 800mOhm |
| Current - Output / Channel | 3A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 200V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerSMD Module, 23 Leads |
| Supplier Device Package | 23-SOP |
| Base Product Number | IRSM505 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | IRSM505-044PA | IRSM505-044PA | IRSM505-044PA | IRSM505-044PA |
| Manufacturer | Infineon Technologies | Infineon Technologies | International Rectifier | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | Not applicable | ||
| Description | IRSM505-044 - INTELLIGENT POWER | IC HALF BRIDGE DRIVER 3A 23SOP | IC HALF BRIDGE DRIVER 3A 23SOP | IRSM505-044 - INTELLIGENT POWER |
| Series | * | µIPM™-DIP | µIPM™-DIP | * |
| Packaging | Bulk | Tube | Bulk | Bulk |
