IRSM505-084PA-IR

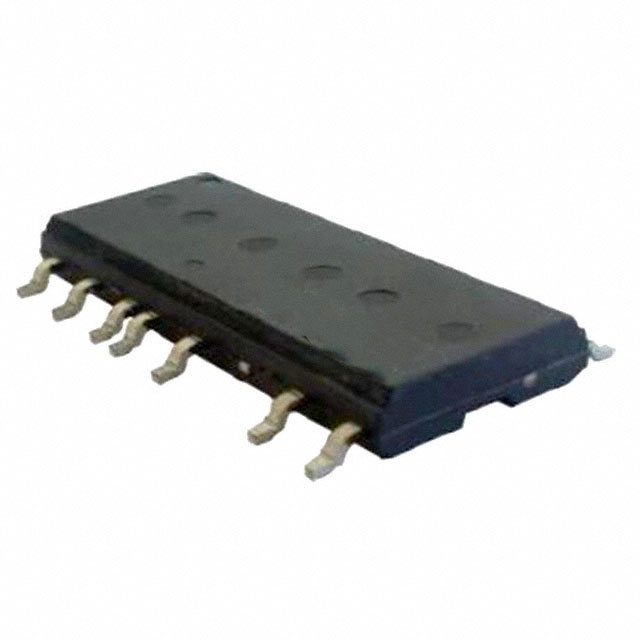

lmages are for reference only.IRSM505-084PA-IR
IC HALF BRIDGE DRIVER 4.6A 23SOP
Datasheet23-PowerSMD Module
32,895 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half Bridge (3) Driver AC Motors MOSFET (Metal Oxide) 23-SOP
IRSM505-084PA-IR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Full Half-Bridge H Bridge Drivers |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | MOSFET (Metal Oxide) |
| Rds On (Typ) | 340mOhm LS, 340mOhm HS |
| Current - Output / Channel | 4.6A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 200V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 23-PowerSMD Module |
| Supplier Device Package | 23-SOP |
| Base Product Number | IRSM505 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | IRSM505-084PA | IRSM505-084PA | IRSM505-084PA-IR | IRSM505-084DA |
| Manufacturer | Infineon Technologies | Infineon Technologies | International Rectifier | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | ROHS3 Compliant |
| Description | IC HALF BRIDGE DRIVER 4.6A 23SOP | IC HALF BRIDGE DRIVER 4.6A 23SOP | IC HALF BRIDGE DRIVER 4.6A 23SOP | IC HALF BRIDGE DRIVER 4.6A 23DIP |
| Series | µIPM™-DIP | µIPM™-DIP | - | µIPM™-DIP |
| Packaging | Tube | Tube | Bulk | Tube |
