IRSM515-055DA2

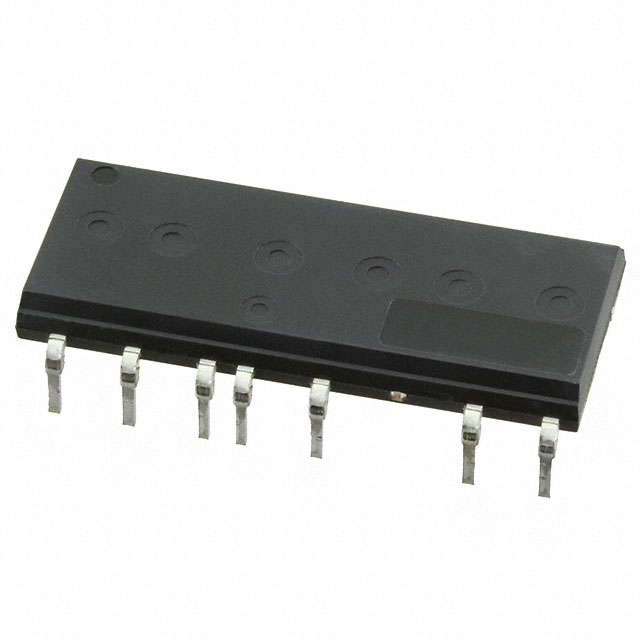

lmages are for reference only.IRSM515-055DA2
IC HALF BRIDGE DRIVER 2.4A 23DIP
Datasheet32-PowerDIP Module, 23 Leads
41,076 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half Bridge (3) Driver AC Motors UMOS 23-DIP
IRSM515-055DA2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Full Half-Bridge H Bridge Drivers |
| Manufacturer | Infineon Technologies |
| Series | µIPM™-DIP |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 1.3Ohm |
| Current - Output / Channel | 2.4A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Through Hole |
| Package / Case | 32-PowerDIP Module, 23 Leads |
| Supplier Device Package | 23-DIP |
| Base Product Number | IRSM515 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | IRSM515-055DA | IRSM515-055DA | IRSM515-055DA2 | IRSM515-055PA |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

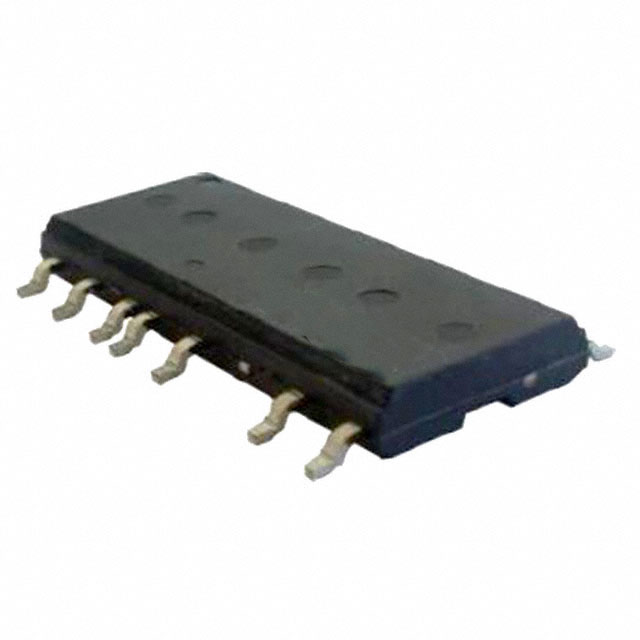

| Description | IC HALF BRIDGE DRIVER 2.4A 23DIP | IC HALF BRIDGE DRIVER 2.4A 23DIP | IC HALF BRIDGE DRIVER 2.4A 23DIP | IC HALF BRIDGE DRIVER 2.4A 23SOP |
| Series | µIPM™-DIP | µIPM™-DIP | µIPM™-DIP | µIPM™-DIP |
| Packaging | Tube | Tube | Tube | Tube |
