Product CatalogPart Number
ISC1210SY390J
Manufacturer
Vishay DaleDescription
FIXED IND 39UH 105MA 5.9 OHM SMD
Datasheet
DatasheetPackage
1210 (3225 Metric)
In Stock
18,757 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ISC1210SY390J
ISC1210SY390J

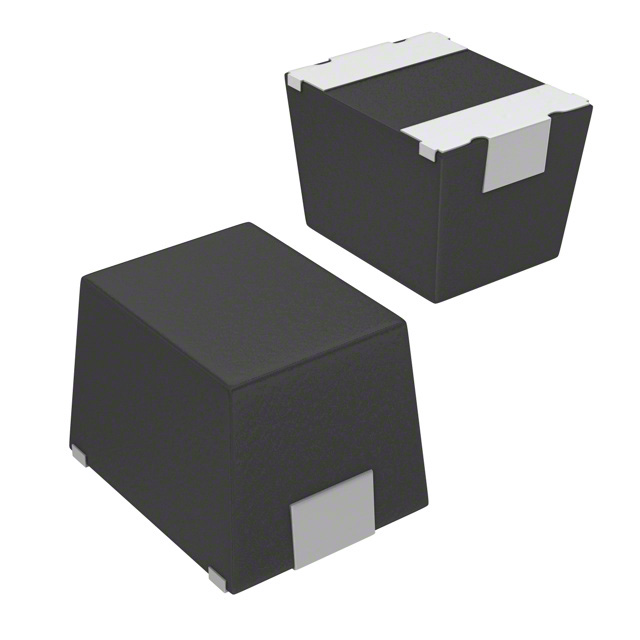

lmages are for reference only.Payment Methods
Delivery Services
39 µH Shielded Drum Core, Wirewound Inductor 105 mA 5.9Ohm Max 1210 (3225 Metric)
Quick Inquiry
ISC1210SY390J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Vishay Dale |
| Series | ISC-1210 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 39 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 105 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.9Ohm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 14MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | ISC1210SY390K | ISC1210SY330J | ISC1210SY330K | ISC1210SY33NM |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FIXED IND 39UH 105MA 5.9 OHM SMD | FIXED IND 33UH 115MA 5.1 OHM SMD | FIXED IND 33UH 115MA 5.1 OHM SMD | FIXED IND 33NH 585MA 180MOHM SMD |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
