Product CatalogPart Number
ISC1812ESR39M
Manufacturer
Vishay DaleDescription
FIXED IND 390NH 394MA 450MOHM SM
Datasheet
DatasheetPackage
1812 (4532 Metric)
In Stock
42,325 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ISC1812ESR39M
ISC1812ESR39M

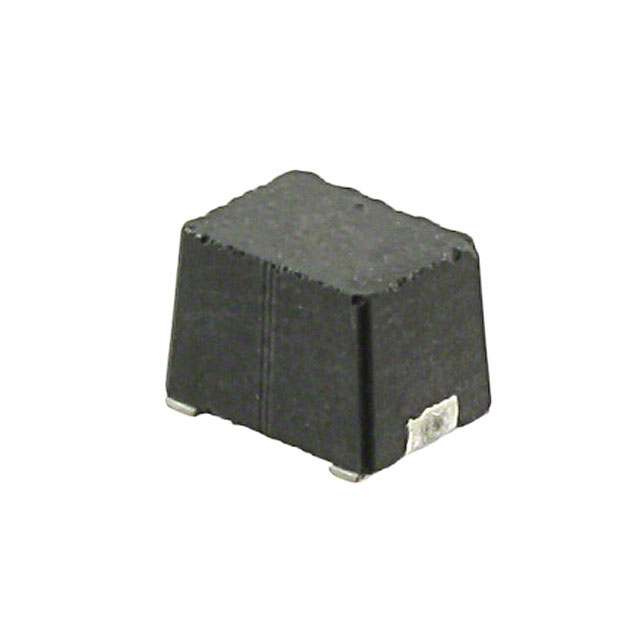

lmages are for reference only.Payment Methods
Delivery Services
390 nH Shielded Wirewound Inductor 394 mA 450mOhm Max 1812 (4532 Metric)
Quick Inquiry
ISC1812ESR39M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Vishay Dale |
| Series | ISC-1812 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 390 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 394 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 450mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 240MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  | | | |
| Part Number | ISC1812ESR39K | ISC1812ESR10M | ISC1812ESR12K | ISC1812ESR12K |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 390NH 394MA 450MOHM SM | FIXED IND 100NH 552MA 230MOHM SM | FIXED IND 120NH 519MA 260MOHM SM | FIXED IND 120NH 519MA 260MOHM SM |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
