Product CatalogPart Number
ISH1515A-TR
Manufacturer
XP PowerDescription
DC DC CONVERTER 15V 2W
Datasheet
DatasheetPackage
8-SMD Module, 5 Leads
In Stock
35,851 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

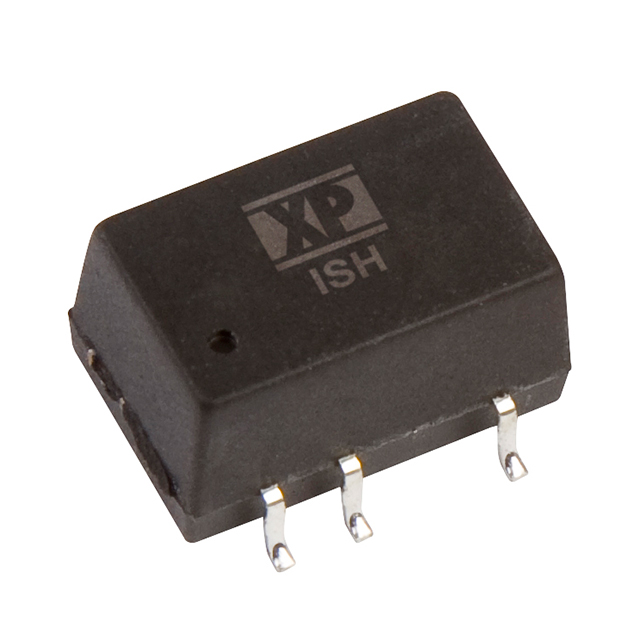

ISH1515A-TR
ISH1515A-TR
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 133mA 13.5V - 16.5V Input
Quick Inquiry
ISH1515A-TR
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | XP Power |
| Series | ISH (2W) |
| Packaging | Tape & Reel (TR)-->Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 133mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.50" L x 0.44" W x 0.29" H (12.7mm x 11.2mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 61000 |
| Base Product Number | ISH1515 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | ISH1515A-H | ISH1515A-TR | I1C2W010A120V-000-R | I1C2W010A120V-001-R |
| Manufacturer | XP Power | XP Power | TDK-Lambda | TDK-Lambda |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 2W | DC DC CONVERTER 15V 2W | DC DC CONVERTER 9.6-28V 200W | DC DC CONVERTER 9.6-28V 200W |
| Series | XP Power | XP Power | TDK-Lambda | TDK-Lambda |
| Packaging | Tube | Tape & Reel (TR)-->Tube | Bulk | Bulk |
