ISL6420BIAZ
lmages are for reference only.ISL6420BIAZ
IC REG CTRLR BUCK 20QSOP
Datasheet20-SSOP (0.154", 3.90mm Width)
11,197 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-QSOP
ISL6420BIAZ
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Renesas Electronics Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 5.6V ~ 28V |
| Frequency - Switching | 100kHz ~ 1.4MHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| Base Product Number | ISL6420 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ISL6420BIAZ-T7A | ISL6420BIAZ-TK | ISL6420BIRZ | ISL6420BIRZ-T7A |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

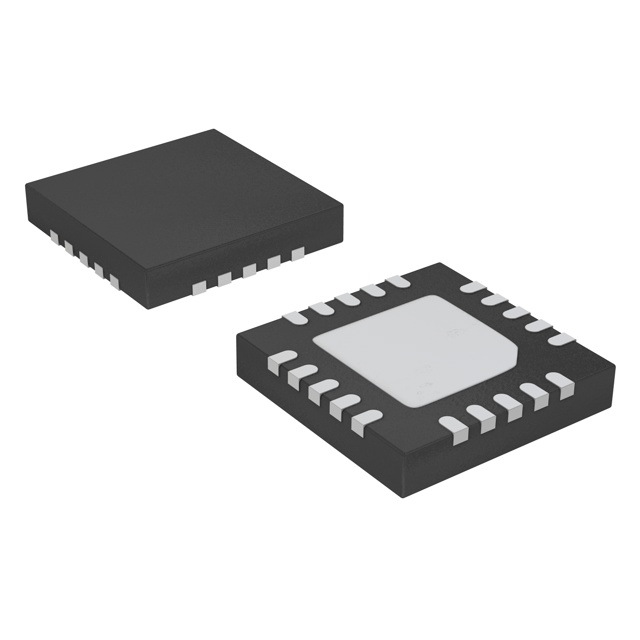

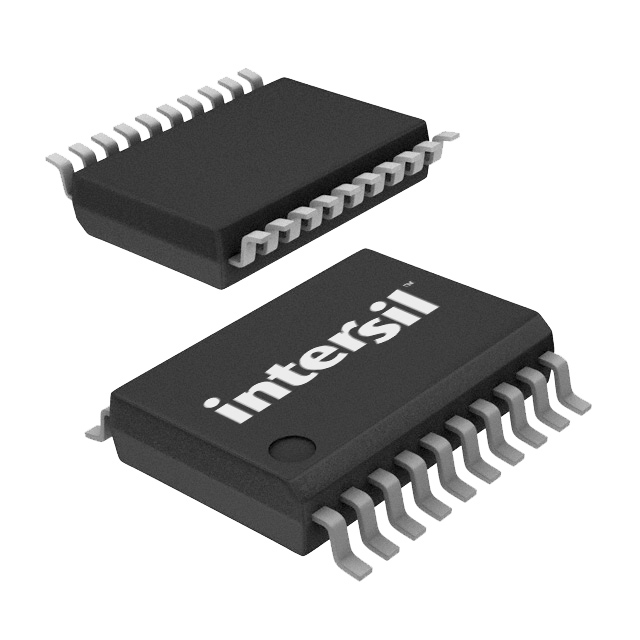

| Description | IC REG CTRLR BUCK 20SSOP | IC REG CTRLR BUCK 20QSOP | IC REG CTRLR BUCK 20QFN | IC REG CTRLR BUCK 20QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
