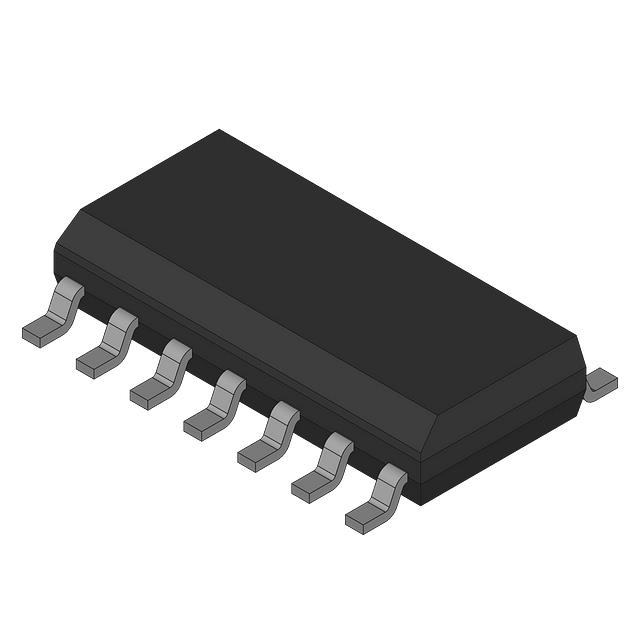

Half-Bridge Gate Driver IC Non-Inverting 14-SOIC
ISL6614CBZ-TR5238
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Intersil |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 10.8V ~ 13.2V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1.25A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Rise / Fall Time (Typ) | 26ns, 18ns |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | ISL6614 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ISL6614ACB | ISL6614ACB-T | ISL6614ACBZ | ISL6614ACBZ-T |
| Manufacturer | Intersil | Intersil | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HALF BRIDGE BASED MOSFET DRIVER | HALF BRIDGE BASED MOSFET DRIVER | IC GATE DRVR HALF-BRIDGE 14SOIC | IC GATE DRVR HALF-BRIDGE 14SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tape & Reel (TR) |
