ISL6741IVZ
lmages are for reference only.Payment Methods
Delivery Services

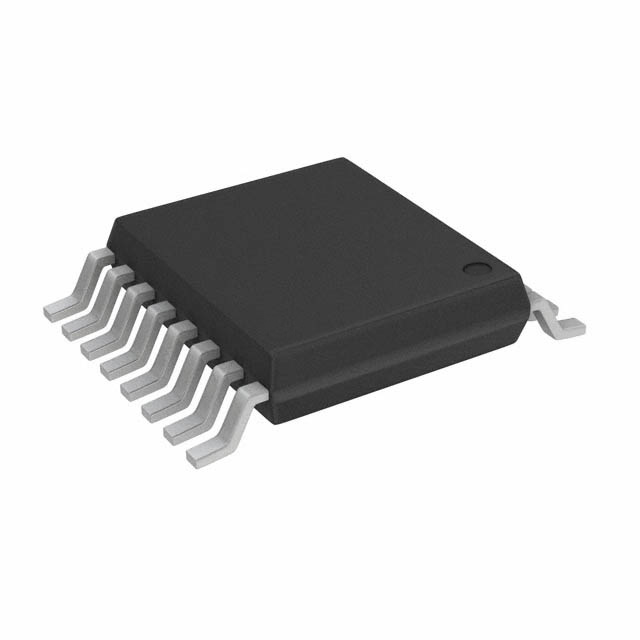

Full-Bridge, Half-Bridge, Push-Pull Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
ISL6741IVZ
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Intersil |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| Frequency - Switching | Up to 1MHz |
| Duty Cycle (Max) | 83% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ISL6741 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | ISL6741IV | ISL6741IV-T | ISL6741IV-T | ISL6741IVZ |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Intersil | Renesas Electronics Corporation |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC REG CTRLR MULT TOP 16TSSOP | IC REG CTRLR MULT TOP 16TSSOP | SWITCHING CONTROLLER | IC REG CTRLR MULT TOP 16TSSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Bulk | Tube |
