ISL68220IRAZ

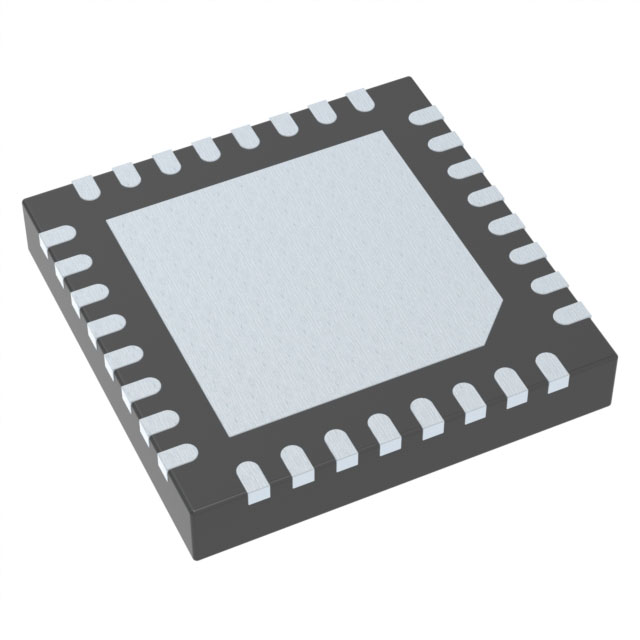

lmages are for reference only.ISL68220IRAZ
INFRA 2OUT/2PH DIGITAL CONTROLLE
Datasheet32-WFQFN Exposed Pad
47,036 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down PMBus, SMBus DC-DC Controller IC 32-TQFN (4x4)
ISL68220IRAZ
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Renesas Electronics Corporation |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Output Type | PWM |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3.135V ~ 3.465V |
| Frequency - Switching | 200kHz ~ 2MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | PMBus, SMBus |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (4x4) |
| Base Product Number | ISL68220 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ISL68220IRAZ-T | ISL68220IRAZ-T7A | ISL68200IRZ | ISL68200IRZ-T |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INFRA 2OUT/2PH DIGITAL CONTROLLE | INFRA 2OUT/2PH DIGITAL CONTROLLE | IC REG CTRLR BUCK PMBUS 24QFN | IC REG CTRLR BUCK PMBUS 24QFN |
| Series | - | - | Rapid Robust Ripple Regulator™ (R4) | Rapid Robust Ripple Regulator™ (R4) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
