Product CatalogPart Number
ITV9550L1260MR
Manufacturer
Hartland Controls/LittelfuseDescription
BATTERY PROTECTOR
Datasheet
DatasheetPackage
Nonstandard SMD
In Stock
99,844 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

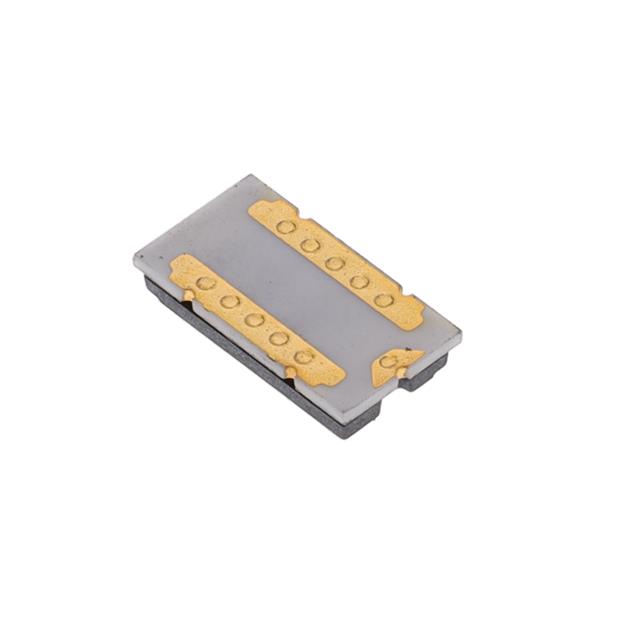

ITV9550L1260MR
ITV9550L1260MR
lmages are for reference only.Payment Methods
Delivery Services
60A 85 VDC Fuse Board Mount Surface Mount
Quick Inquiry
ITV9550L1260MR
Specifications
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Hartland Controls/Littelfuse |
| Series | ITV9550 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount |
| Current Rating (Amps) | 60A |
| Voltage Rating - AC | - |
| Response Time | Fast Blow |
| Applications | Battery Protection |
| Features | - |
| Class | - |
| Approval Agency | - |
| Operating Temperature | -10°C ~ 65°C |
| Breaking Capacity @ Rated Voltage | 160A |
| Package / Case | Nonstandard SMD |
| Size / Dimension | 0.374" L x 0.197" W x 0.079" H (9.50mm x 5.00mm x 2.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 85 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | 0.002 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | ITV9550L1230MR | ITV9550L1245MR | ITV9550L1445MR | ITV9550L1460MR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Hartland Controls/Littelfuse |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BATTERY PROTECTOR 12V 30A | FUSE BATTERY PROTECTOR 12V 45A | FUSE BATTERY PROTECTOR 14V 45A | BATTERY PROTECTOR |
| Series | POLYSWITCH®, ITV9550 | POLYSWITCH®, ITV9550 | POLYSWITCH®, ITV9550 | ITV9550 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
