Product CatalogPart Number
IVB0105S05
Manufacturer
XP PowerDescription
DC DC CONVERTER SINGLE 5V 1W
Datasheet
DatasheetPackage
7-SIP Module, 4 Leads
In Stock
83,226 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

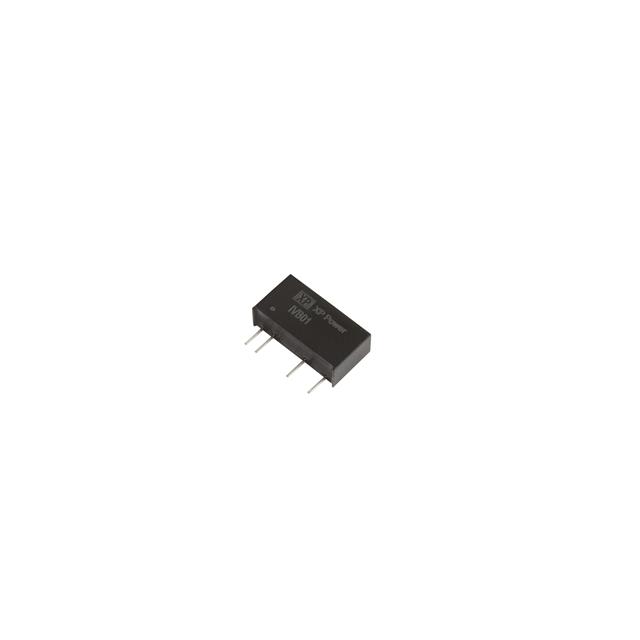

IVB0105S05
IVB0105S05
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Quick Inquiry
IVB0105S05
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | XP Power |
| Series | IVB01 (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | IVB0105S05 | IVB0105S09 | IVB0105S12 | IVB0105S15 |
| Manufacturer | XP Power | XP Power | XP Power | XP Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER SINGLE 5V 1W | DC DC CONVERTER SINGLE 9V 1W | DC DC CONVERTER SINGLE 12V 1W | DC DC CONVERTER SINGLE 15V 1W |
| Series | XP Power | XP Power | XP Power | XP Power |
| Packaging | Tube | Tube | Tube | Tube |
