IXBT12N300
lmages are for reference only.Payment Methods
Delivery Services

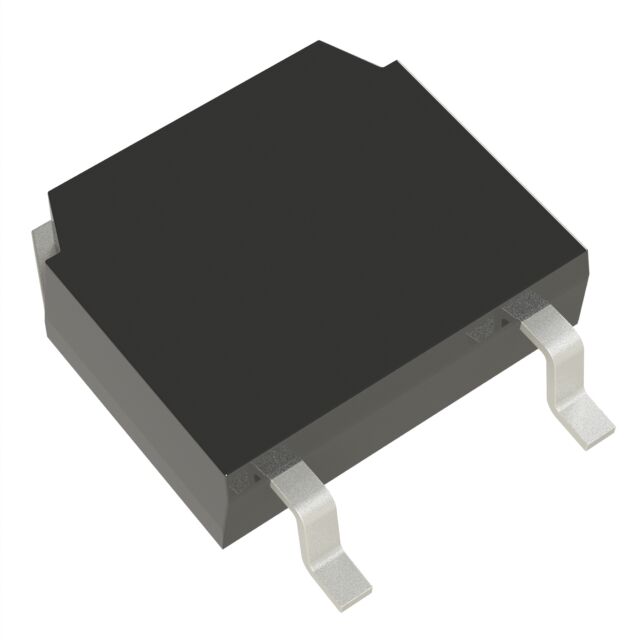

IGBT 3000 V 30 A 160 W Surface Mount TO-268AA
IXBT12N300
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | BIMOSFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 100 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 12A |
| Power - Max | 160 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 62 nC |
| Td (on/off) @ 25°C | - |
| Test Condition | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
| Reverse Recovery Time (trr) | 1.4 µs |
| Base Product Number | IXBT12 |
| Product Attribute |  |
 |
|
 |
| Part Number | IXBT12N300HV | IXBT10N170 | IXBT14N300HV | IXBT16N170A |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

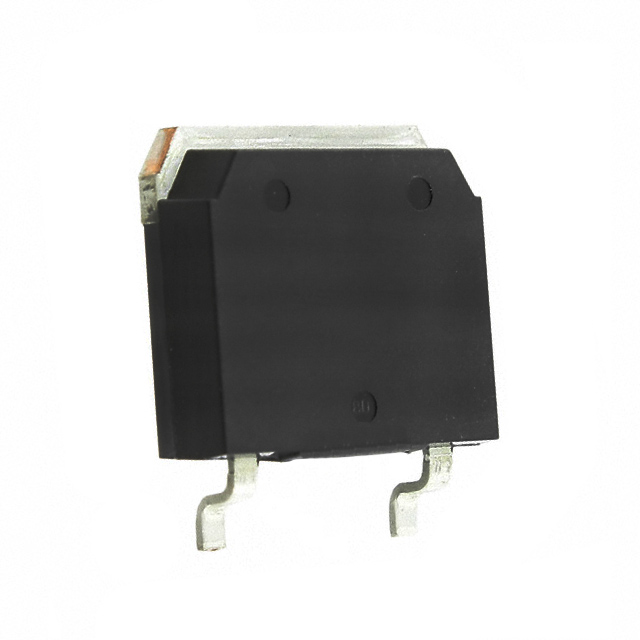

| Description | IGBT 3000V 30A TO268HV | IGBT 1700V 20A TO268AA | IGBT 3000V 38A TO268HV | IGBT 1700V 16A TO268AA |
| Series | BIMOSFET™ | BIMOSFET™ | BIMOSFET™ | BIMOSFET™ |
| Packaging | Tube | Tube | Tube | Tube |
