Product CatalogPart Number
IXFH15N60
Manufacturer
IXYSDescription
MOSFET N-CH 600V 15A TO-247AD
Datasheet
DatasheetPackage
TO-247-3
In Stock
41,677 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFH15N60
IXFH15N60
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 600 V 15A (Tc) 300W (Tc) Through Hole TO-247AD (IXFH)
Quick Inquiry
IXFH15N60
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™ |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 4mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4500 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247AD (IXFH) |
| Package / Case | TO-247-3 |
| Base Product Number | IXFH15 |
| Gate Charge (Qg) (Max) @ Vgs | 170 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

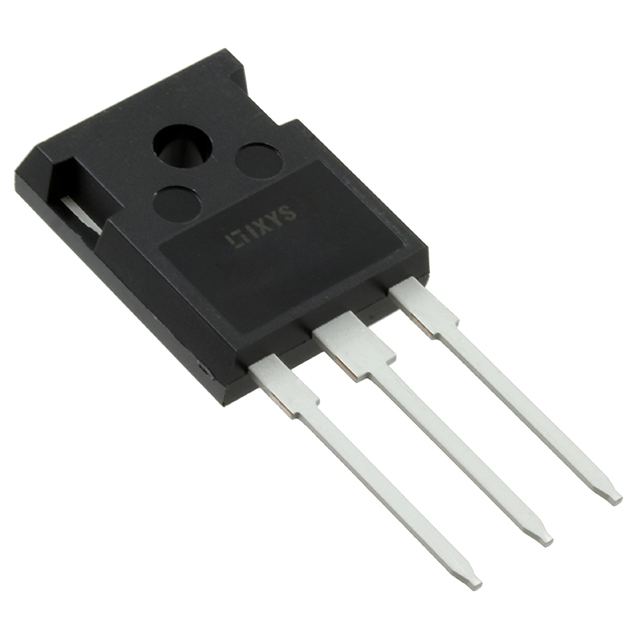

| Part Number | IXFH150N15P | IXFH150N17T | IXFH150N17T2 | IXFH150N20T |
| Manufacturer | Littelfuse Inc. | IXYS | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 150V 150A TO247AD | MOSFET N-CH 175V 150A TO247AD | MOSFET N-CH 175V 150A TO247AD | MOSFET N-CH 200V 150A TO247AD |
| Series | HiPerFET™, Polar | TrenchHV™ | HiPerFET™, TrenchT2™ | HiPerFET™, Trench |
| Packaging | Tube | Tube | Tube | Tube |
