Product CatalogPart Number
IXFK100N10
Manufacturer
IXYSDescription
MOSFET N-CH 100V 100A TO264AA
Datasheet
DatasheetPackage
TO-264-3, TO-264AA
In Stock
18,196 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFK100N10
IXFK100N10
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 100 V 100A (Tc) 500W (Tc) Through Hole TO-264AA (IXFK)
Quick Inquiry
IXFK100N10
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 75A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 8mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 500W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264AA (IXFK) |
| Package / Case | TO-264-3, TO-264AA |
| Base Product Number | IXFK100 |
| Gate Charge (Qg) (Max) @ Vgs | 360 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | IXFK100N25 | IXFK100N65X2 | IXFK102N30P | IXFK110N07 |
| Manufacturer | IXYS | Littelfuse Inc. | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 250V 100A TO264AA | MOSFET N-CH 650V 100A TO264 | MOSFET N-CH 300V 102A TO264AA | MOSFET N-CH 70V 110A TO264AA |
| Series | HiPerFET™ | HiPerFET™, Ultra X2 | HiPerFET™, Polar | HiPerFET™ |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IXFK100N25
IXYS
IXFK100N65X2
Littelfuse Inc.
IXFK102N30P
IXYS
IXFK110N07
IXYS
IXFK110N65X3
Littelfuse Inc.
IXFK120N20
IXYS
IXFK120N20P
Littelfuse Inc.
IXFK120N25
IXYS
IXFK120N25P
Littelfuse Inc.

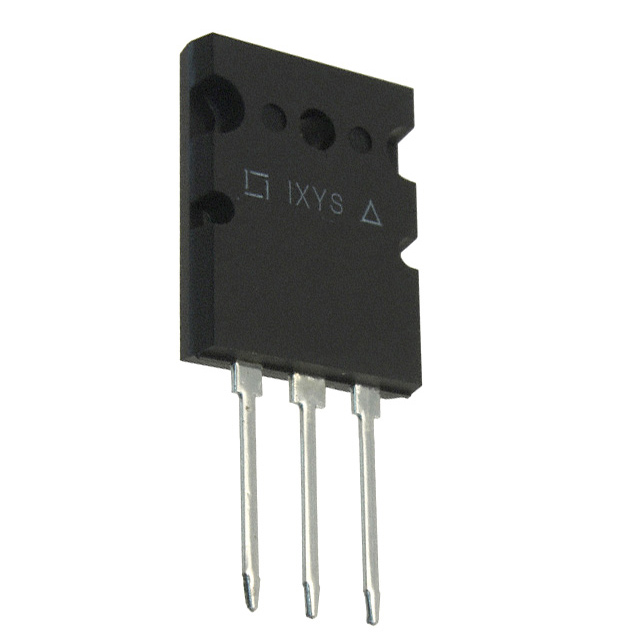

IXFK120N30P3
