Product CatalogPart Number
IXFK220N15P
Manufacturer
Littelfuse Inc.Description
MOSFET N-CH 150V 220A TO264AA
Datasheet
DatasheetPackage
TO-264-3, TO-264AA
In Stock
33,359 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFK220N15P
IXFK220N15P
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 150 V 220A (Tc) 1250W (Tc) Through Hole TO-264AA (IXFK)
Quick Inquiry
IXFK220N15P
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | HiPerFET™, Polar |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 220A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 8mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 15400 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1250W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264AA (IXFK) |
| Package / Case | TO-264-3, TO-264AA |
| Base Product Number | IXFK220 |
| Gate Charge (Qg) (Max) @ Vgs | 162 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | IXFK220N17T2 | IXFK220N20X3 | IXFK200N10P | IXFK20N120 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 170V 220A TO264AA | MOSFET N-CH 200V 220A TO264 | MOSFET N-CH 100V 200A TO264AA | MOSFET N-CH 1200V 20A TO264AA |
| Series | HiPerFET™, TrenchT2™ | HiPerFET™, Ultra X3 | HiPerFET™, Polar | HiPerFET™ |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IXFK200N10P
Littelfuse Inc.
IXFK20N120
IXYS
IXFK20N120P
IXYS
IXFK20N80Q
IXYS
IXFK210N17T
IXYS
IXFK210N30X3
Littelfuse Inc.
IXFK21N100F
IXYS
IXFK220N17T2
Littelfuse Inc.
IXFK220N20X3
Littelfuse Inc.
IXFK230N20T
Littelfuse Inc.
IXFK240N15T2
Littelfuse Inc.
IXFK240N25X3
Littelfuse Inc.
IXFK24N100
IXYS
IXFK24N100F
IXYS
IXFK24N100Q3
Littelfuse Inc.
IXFK24N80P
Littelfuse Inc.
IXFK24N90Q
IXYS

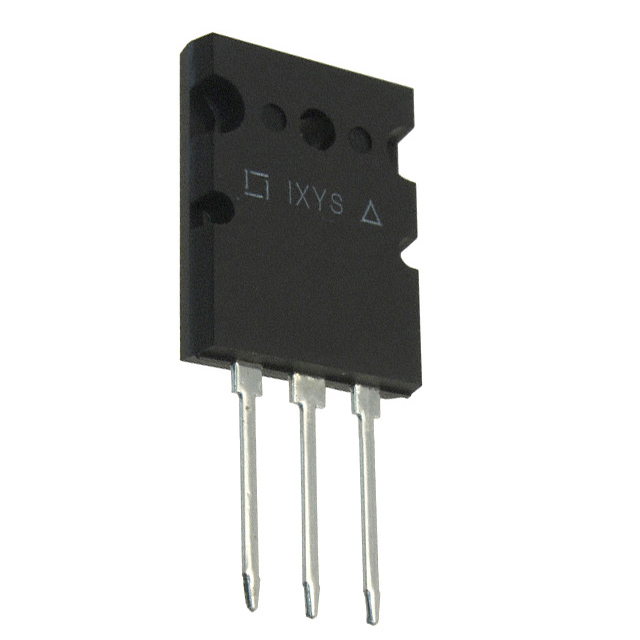

IXFK250N10P
