Product CatalogPart Number
IXFL34N100
Manufacturer
IXYSDescription
MOSFET N-CH 1000V 30A ISOPLUS264
Datasheet
DatasheetPackage
TO-264-3, TO-264AA
In Stock
28,296 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFL34N100
IXFL34N100

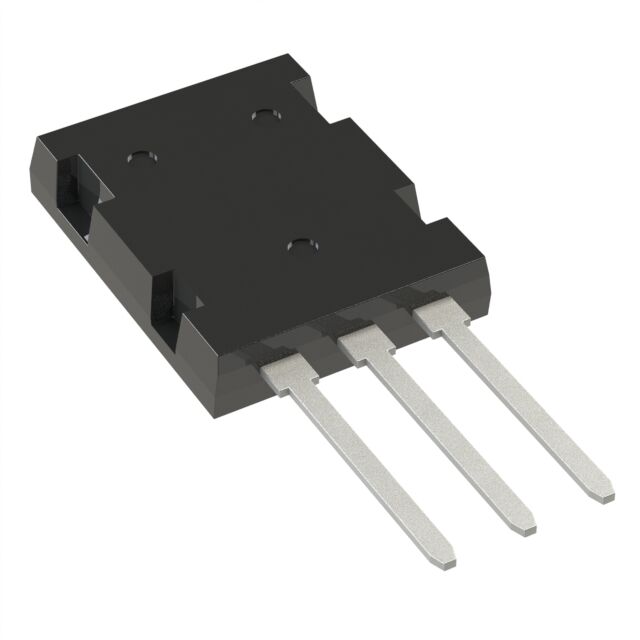

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 1000 V 30A (Tc) 550W (Tc) Through Hole ISOPLUS264™
Quick Inquiry
IXFL34N100
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 280mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 8mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9200 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 550W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | ISOPLUS264™ |
| Package / Case | TO-264-3, TO-264AA |
| Base Product Number | IXFL34 |
| Gate Charge (Qg) (Max) @ Vgs | 380 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IXFL100N50P | IXFL132N50P3 | IXFL210N30P3 | IXFL30N120P |
| Manufacturer | Littelfuse Inc. | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 500V 70A ISOPLUS264 | MOSFET N-CH 500V 63A ISOPLUS264 | MOSFET N-CH 300V 108A ISOPLUS264 | MOSFET N-CH 1200V 18A I5PAK |
| Series | HiPerFET™, Polar | HiPerFET™, Polar3™ | HiPerFET™, Polar3™ | HiPerFET™, Polar |
| Packaging | Tube | Tube | Tube | Tube |
