IXFN300N20X3

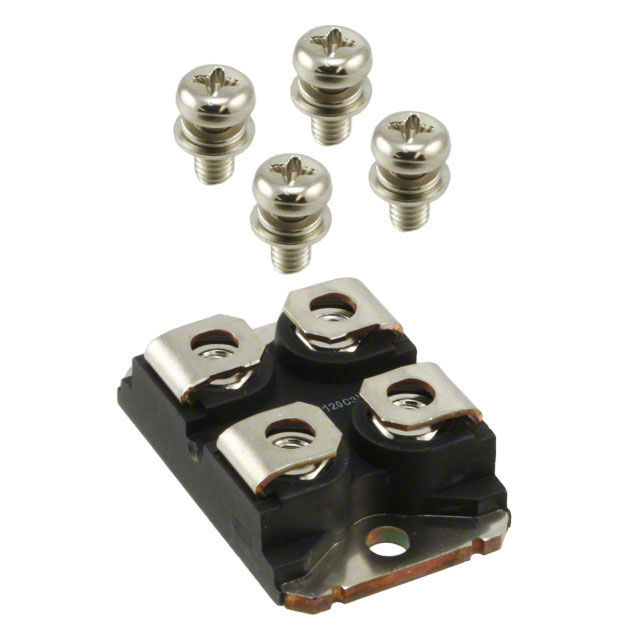

lmages are for reference only.IXFN300N20X3
MOSFET N-CH 200V 300A SOT227B
DatasheetSOT-227-4, miniBLOC
89,521 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 200 V 300A (Tc) 695W (Tc) Chassis Mount SOT-227B
IXFN300N20X3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | HiPerFET™, Ultra X3 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 300A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 150A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 8mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 23800 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 695W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | IXFN300 |
| Gate Charge (Qg) (Max) @ Vgs | 375 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IXFN300N10P | IXFN30N110P | IXFN30N120P | IXCP01N90E |
| Manufacturer | Littelfuse Inc. | IXYS | Littelfuse Inc. | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 100V 295A SOT227B | MOSFET N-CH 1100V 25A SOT-227B | MOSFET N-CH 1200V 30A SOT-227B | MOSFET N-CH 900V 250MA TO220AB |
| Series | HiPerFET™, Polar | HiPerFET™, Polar | HiPerFET™, Polar | - |
| Packaging | Tube | Tube | Tube | Tube |
