Product CatalogPart Number
IXFN73N30
Manufacturer
IXYSDescription
MOSFET N-CH 300V 73A SOT-227B
Datasheet
DatasheetPackage
SOT-227-4, miniBLOC
In Stock
56,434 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFN73N30
IXFN73N30

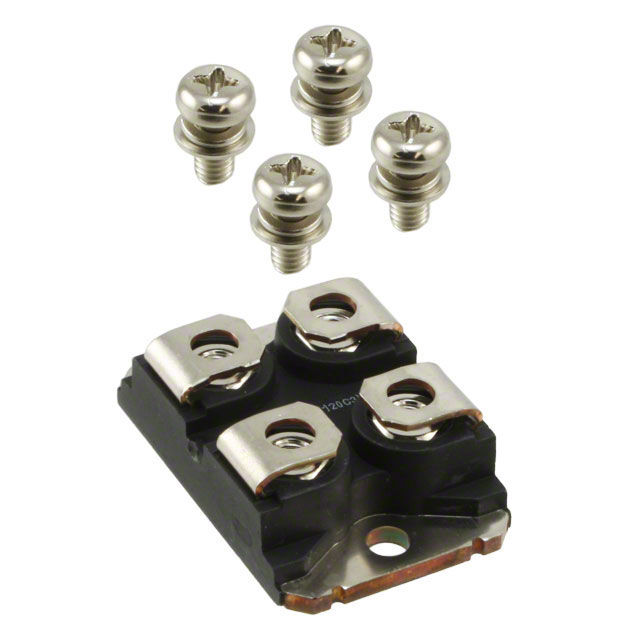

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 300 V 73A (Tc) 500W (Tc) Chassis Mount SOT-227B
Quick Inquiry
IXFN73N30
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 300 V |
| Current - Continuous Drain (Id) @ 25°C | 73A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 8mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 500W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | IXFN73 |
| Gate Charge (Qg) (Max) @ Vgs | 360 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IXFN73N30Q | IXFA102N15T | IXFA10N60P | IXFA10N60P-TRL |
| Manufacturer | IXYS | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 300V 73A SOT-227B | MOSFET N-CH 150V 102A TO263 | MOSFET N-CH 600V 10A TO263 | MOSFET N-CH 600V 10A D2-PAK |
| Series | HiPerFET™, Q Class | HiPerFET™, Trench | HiPerFET™, Polar | HiPerFET™, Polar |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
