Product CatalogPart Number
IXFQ94N30P3
Manufacturer
IXYSDescription
MOSFET N-CH 300V 94A TO3P
Datasheet
DatasheetPackage
TO-3P-3, SC-65-3
In Stock
78,470 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFQ94N30P3
IXFQ94N30P3
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 300 V 94A (Tc) 1040W (Tc) Through Hole TO-3P
Quick Inquiry
IXFQ94N30P3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™, Polar3™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 300 V |
| Current - Continuous Drain (Id) @ 25°C | 94A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 47A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 4mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5510 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1040W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3P |
| Package / Case | TO-3P-3, SC-65-3 |
| Base Product Number | IXFQ94 |
| Gate Charge (Qg) (Max) @ Vgs | 102 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

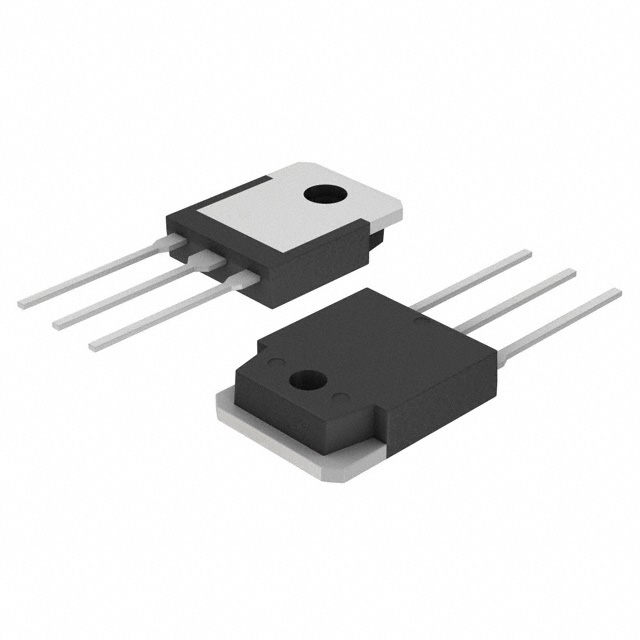

| Part Number | IXFQ90N20X3 | IQFH36N04NM6ATMA1 | IXTA220N075T7 | IRF3415L |
| Manufacturer | Littelfuse Inc. | Infineon Technologies | IXYS | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | MOSFET N-CH 200V 90A TO3P | IQFH36N04NM6ATMA1 | MOSFET N-CH 75V 220A TO263-7 | MOSFET N-CH 150V 43A TO262 |
| Series | HiPerFET™, Ultra X3 | OptiMOS™ 6 | TrenchMV™ | HEXFET® |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
