Product CatalogPart Number
IXFX100N65X2
Manufacturer
Littelfuse Inc.Description
MOSFET N-CH 650V 100A PLUS247-3
Datasheet
DatasheetPackage
TO-247-3 Variant
In Stock
36,904 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFX100N65X2
IXFX100N65X2
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 100A (Tc) 1040W (Tc) Through Hole PLUS247™-3
Quick Inquiry
IXFX100N65X2
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | HiPerFET™, Ultra X2 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 4mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 11300 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1040W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PLUS247™-3 |
| Package / Case | TO-247-3 Variant |
| Base Product Number | IXFX100 |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IXFX100N25 | IXCP01N90E | IXFA102N15T | IXFA10N60P |
| Manufacturer | IXYS | IXYS | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 250V 100A PLUS247-3 | MOSFET N-CH 900V 250MA TO220AB | MOSFET N-CH 150V 102A TO263 | MOSFET N-CH 600V 10A TO263 |
| Series | HiPerFET™ | - | HiPerFET™, Trench | HiPerFET™, Polar |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IXFX100N25
IXYS
IXFX110N65X3
Littelfuse Inc.
IXFX120N20
IXYS
IXFX120N25
IXYS
IXFX120N25P
Littelfuse Inc.
IXFX120N30P3
Littelfuse Inc.
IXFX120N30T
Littelfuse Inc.
IXFX120N60X3
Littelfuse Inc.
IXFX120N65X2
Littelfuse Inc.
IXFX12N90Q
IXYS
IXFX130N65X3
Littelfuse Inc.
IXFX140N25T
Littelfuse Inc.
IXFX140N30P
Littelfuse Inc.
IXFX140N60X3
Littelfuse Inc.
IXFX14N100
IXYS
IXFX150N15
IXYS
IXFX150N30P3
IXYS

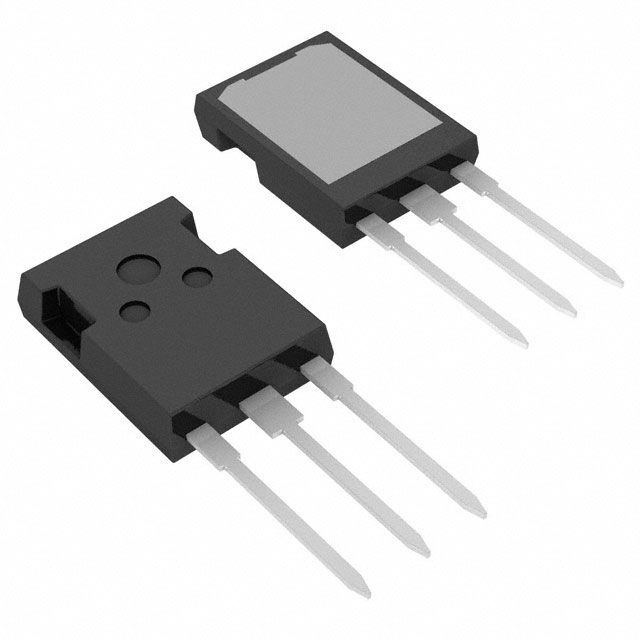

IXFX15N100
