IXFY4N60P3
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 600 V 4A (Tc) 114W (Tc) Surface Mount TO-252AA
IXFY4N60P3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™, Polar3™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.2Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 365 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 114W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | IXFY4 |
| Gate Charge (Qg) (Max) @ Vgs | 6.9 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

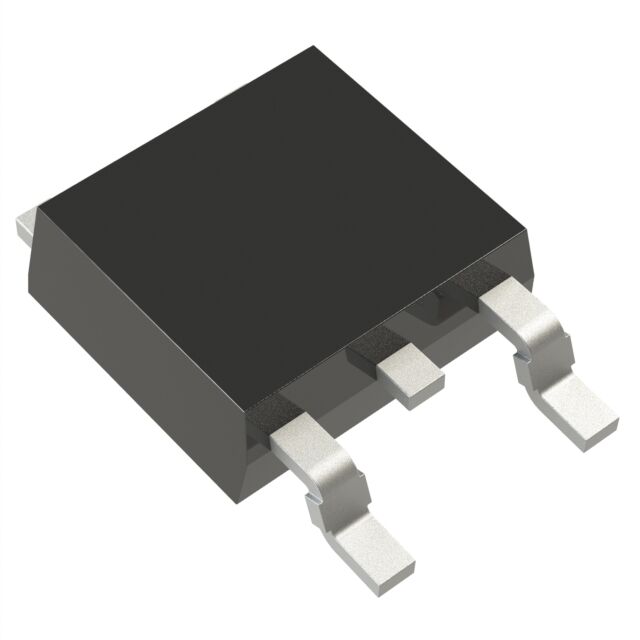

| Part Number | IXFY12N65X3 | IXFY13N60X3 | IXFY26N30X3 | IXFY30N25X3 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DISCRETE MOSFET 12A 650V X3 TO25 | DISCRETE MOSFET 13A 600V X3 TO25 | MOSFET N-CH 300V 26A TO252AA | MOSFET N-CH 250V 30A TO252AA |
| Series | - | - | HiPerFET™, Ultra X3 | HiPerFET™, Ultra X3 |
| Packaging | Tube | Tube | Tube | Tube |
