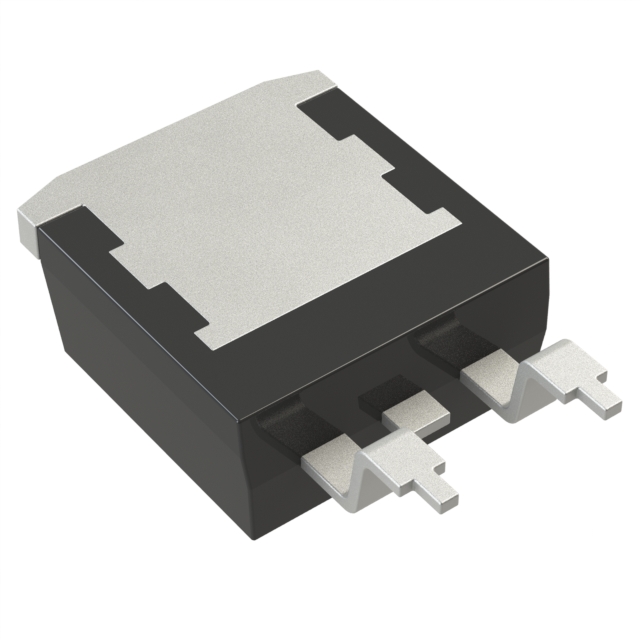

IGBT 1000 V 24 A 100 W Surface Mount TO-263AA
IXGA12N100
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Current - Collector (Ic) (Max) | 24 A |
| Current - Collector Pulsed (Icm) | 48 A |
| Vce(on) (Max) @ Vge, Ic | 3.5V @ 15V, 12A |
| Power - Max | 100 W |
| Switching Energy | 2.5mJ (off) |
| Input Type | Standard |
| Gate Charge | 65 nC |
| Td (on/off) @ 25°C | 100ns/850ns |
| Test Condition | 800V, 12A, 120Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AA |
| Reverse Recovery Time (trr) | - |
| Base Product Number | IXGA12 |
| Product Attribute |  |
 |
 |
 |
| Part Number | IXGA12N120A3 | IXGA12N120A3-TRL | IXGA12N60B | IXGA12N60CD1 |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IGBT 1200V 22A 100W TO263 | IXGA12N120A3 TRL | IGBT 600V 24A 100W TO263AA | IGBT 600V 24A 100W TO263AA |
| Series | GenX3™ | GenX3™ | HiPerFAST™ | HiPerFAST™, Lightspeed™ |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
