Product CatalogPart Number
IXKR40N60C
Manufacturer
IXYSDescription
MOSFET N-CH 600V 38A ISOPLUS247
Datasheet
DatasheetPackage
TO-247-3
In Stock
27,256 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXKR40N60C
IXKR40N60C
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 600 V 38A (Tc) Through Hole ISOPLUS247™
Quick Inquiry
IXKR40N60C
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | CoolMOS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 3mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | ISOPLUS247™ |
| Package / Case | TO-247-3 |
| Base Product Number | IXKR40 |
| Gate Charge (Qg) (Max) @ Vgs | 250 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

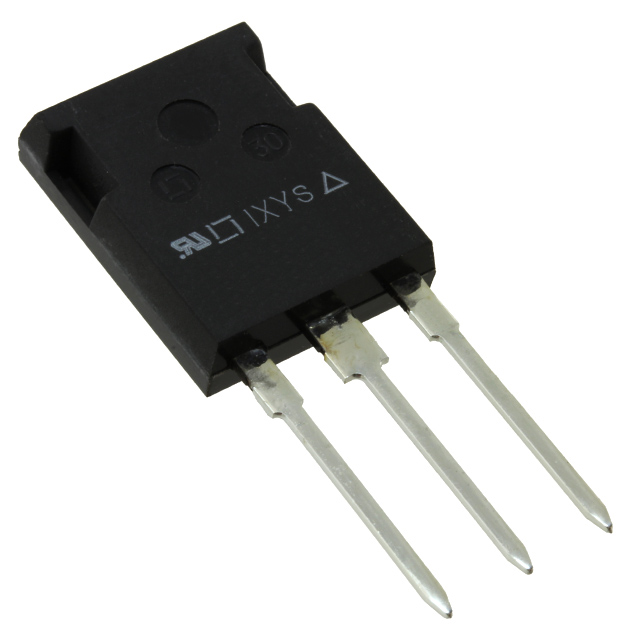

| Part Number | IXKR25N80C | IXKR47N60C5 | BS170PSTOA | AUIRF4104S |
| Manufacturer | IXYS | Littelfuse Inc. | Diodes Incorporated | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 800V 25A ISOPLUS247 | MOSFET N-CH 600V 47A ISOPLUS247 | MOSFET N-CH 60V 270MA E-LINE | MOSFET N-CH 40V 75A D2PAK |
| Series | CoolMOS™ | CoolMOS™ | - | HEXFET® |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
