IGBT PT 600 V 20 A 100 W Surface Mount TO-263AA
IXSA10N60B2D1
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 30 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 10A |
| Power - Max | 100 W |
| Switching Energy | 430µJ (off) |
| Input Type | Standard |
| Gate Charge | 17 nC |
| Td (on/off) @ 25°C | 30ns/180ns |
| Test Condition | 480V, 10A, 30Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AA |
| Reverse Recovery Time (trr) | 25 ns |
| Base Product Number | IXSA10 |
| Product Attribute |  |
 |
|
 |

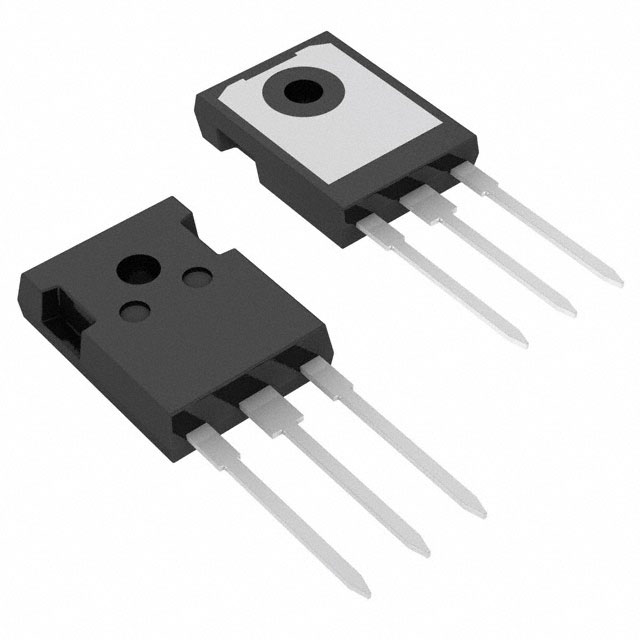

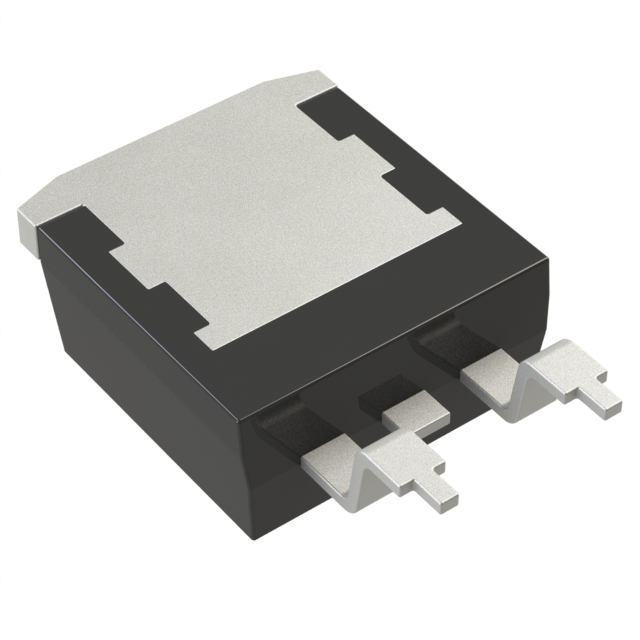

| Part Number | IXSA15N120B | IXSA20N60B2D1 | IXSH10N60B2D1 | IXSH15N120B |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ||||
| Description | IGBT 1200V 30A 150W TO263AA | IGBT 600V 35A 190W TO263 | IGBT 600V 20A 100W TO247 | IGBT 1200V 30A 150W TO247 |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Tube |
