IXSH24N60BD1
Manufacturer
IXYSDescription

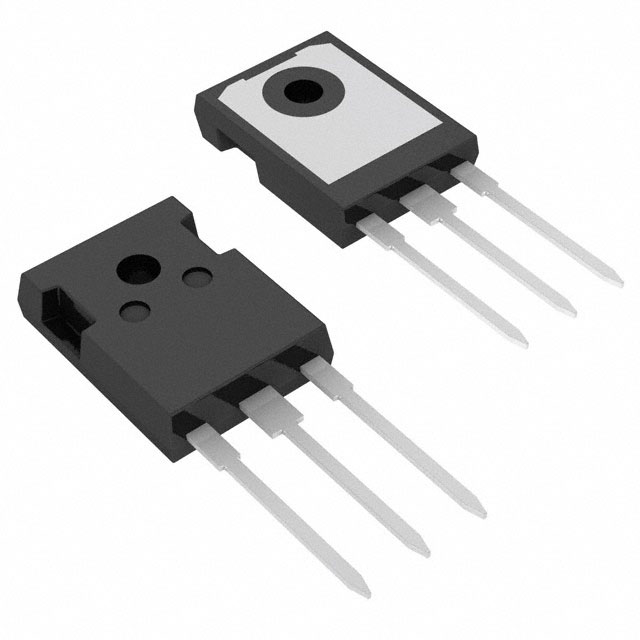

IGBT 600V 48A 150W TO247
Datasheet
DatasheetPackage
TO-247-3
In Stock
97,163 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXSH24N60BD1
IXSH24N60BD1
lmages are for reference only.Payment Methods
Delivery Services
IGBT 600 V 48 A 150 W Through Hole TO-247AD
Quick Inquiry
IXSH24N60BD1
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 48 A |
| Current - Collector Pulsed (Icm) | 96 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 24A |
| Power - Max | 150 W |
| Switching Energy | 1.3mJ (off) |
| Input Type | Standard |
| Gate Charge | 41 nC |
| Td (on/off) @ 25°C | 50ns/150ns |
| Test Condition | 480V, 24A, 33Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
| Reverse Recovery Time (trr) | 25 ns |
| Base Product Number | IXSH24 |
