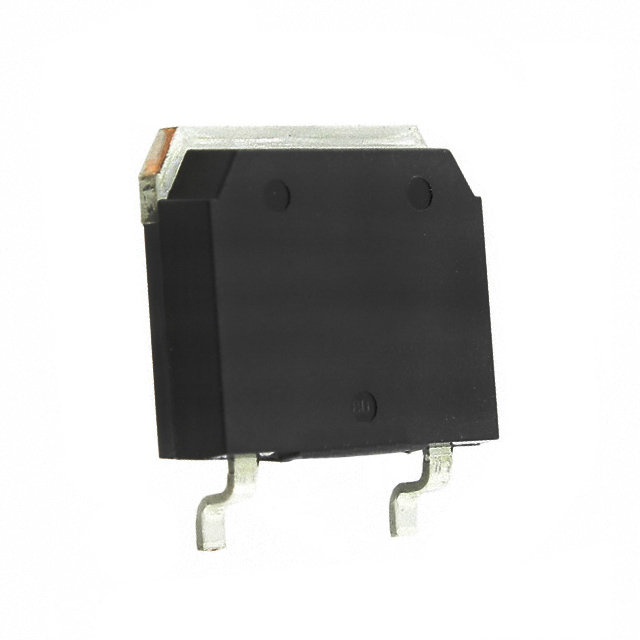

IGBT PT 600 V 75 A 280 W Surface Mount TO-268AA
IXST40N60B
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 40A |
| Power - Max | 280 W |
| Switching Energy | 1.8mJ (off) |
| Input Type | Standard |
| Gate Charge | 190 nC |
| Td (on/off) @ 25°C | 50ns/110ns |
| Test Condition | 480V, 40A, 2.7Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
| Reverse Recovery Time (trr) | - |
| Base Product Number | IXST40 |
| Product Attribute |  |
|
|
 |
| Part Number | IXST15N120B | IXST15N120BD1 | IXST24N60BD1 | IXST30N60B |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ||||
| Description | IGBT PT 1200V 30A TO268AA | IGBT PT 1200V 30A TO268AA | IGBT 600V 48A TO268AA | IGBT PT 600V 55A TO268AA |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Box | Tube |
