IXTA34N65X2

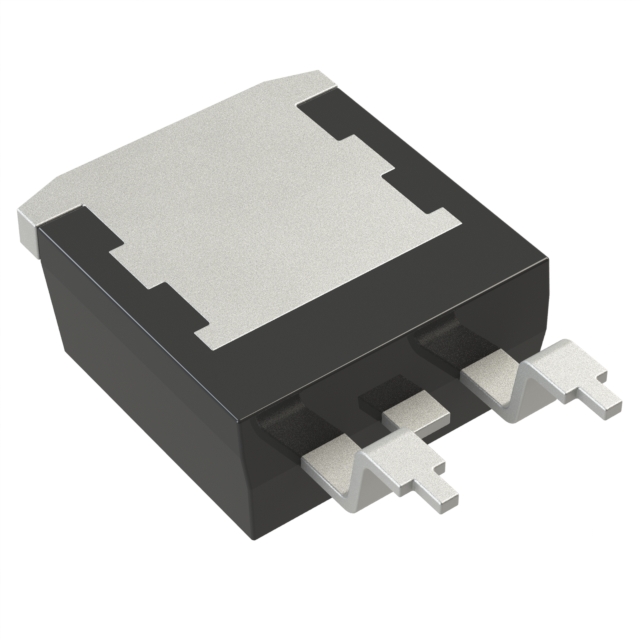

lmages are for reference only.IXTA34N65X2
MOSFET N-CH 650V 34A TO263AA
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
86,781 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 34A (Tc) 540W (Tc) Surface Mount TO-263AA
IXTA34N65X2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | Ultra X2 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 96mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 540W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263AA |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | IXTA34 |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IXTA34N65X2-TRL | IXTA300N04T2 | IXTA300N04T2-7 | IXTA30N25L2 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

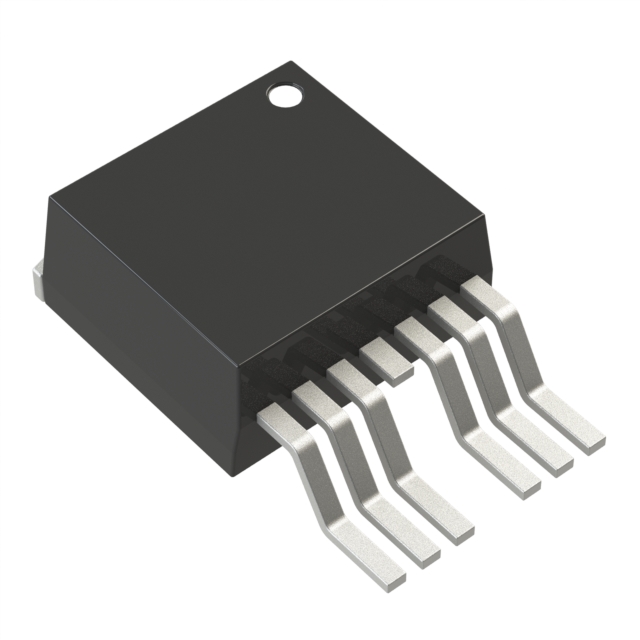

| Description | MOSFET N-CH 650V 34A TO263 | MOSFET N-CH 40V 300A TO263 | MOSFET N-CH 40V 300A TO263-7 | MOSFET N-CH 250V 30A TO263 |
| Series | Ultra X2 | TrenchT2™ | TrenchT2™ | Linear L2™ |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube |
