Product CatalogPart Number
IXTH02N450HV
Manufacturer
Littelfuse Inc.Description
MOSFET N-CH 4500V 200MA TO247HV
Datasheet
DatasheetPackage
TO-247-3 Variant
In Stock
68,999 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXTH02N450HV
IXTH02N450HV
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 4500 V 200mA (Tc) 113W (Tc) Through Hole TO-247HV
Quick Inquiry
IXTH02N450HV
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 4500 V |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 625Ohm @ 10mA, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 246 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 113W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247HV |
| Package / Case | TO-247-3 Variant |
| Base Product Number | IXTH02 |
| Gate Charge (Qg) (Max) @ Vgs | 10.6 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IXTH02N250 | IXCP01N90E | IXFA102N15T | IXFA10N60P |
| Manufacturer | Littelfuse Inc. | IXYS | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

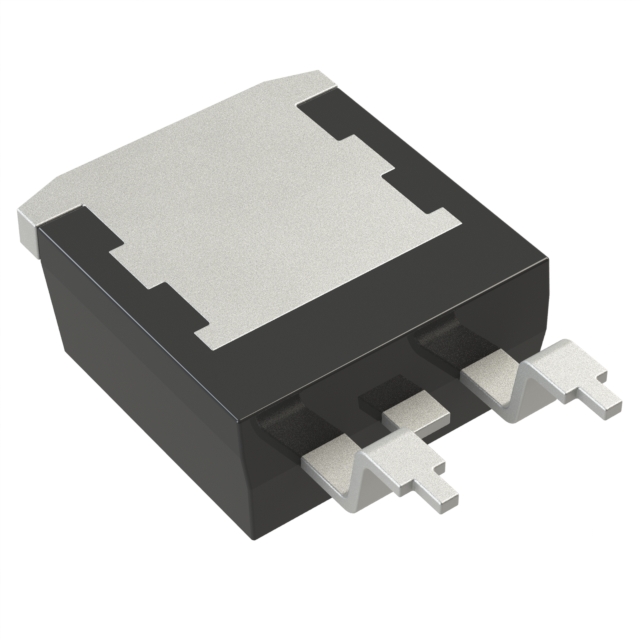

| Description | MOSFET N-CH 2500V 200MA TO247 | MOSFET N-CH 900V 250MA TO220AB | MOSFET N-CH 150V 102A TO263 | MOSFET N-CH 600V 10A TO263 |
| Series | - | - | HiPerFET™, Trench | HiPerFET™, Polar |
| Packaging | Tube | Tube | Tube | Tube |
