Product CatalogPart Number
IXTP01N100D
Manufacturer
Littelfuse Inc.Description
MOSFET N-CH 1000V 400MA TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
64,872 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXTP01N100D
IXTP01N100D

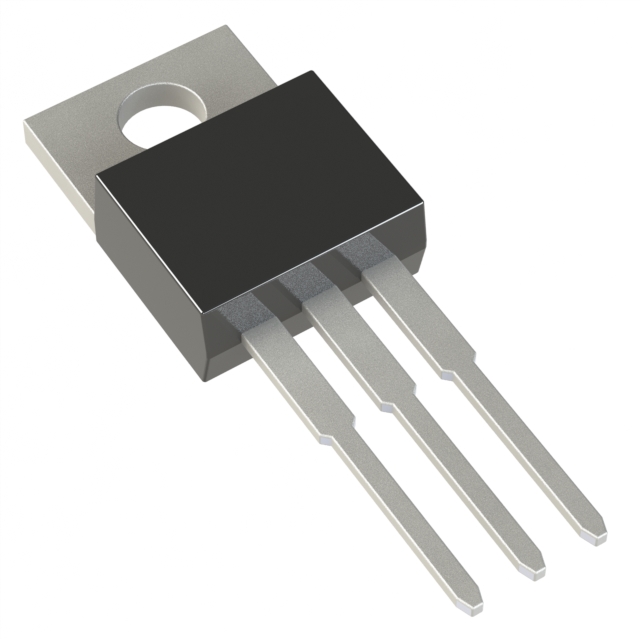

lmages are for reference only.Payment Methods
Delivery Services
N-Channel, Depletion Mode 1000 V 400mA (Tc) 1.1W (Ta), 25W (Tc) Through Hole TO-220-3
Quick Inquiry
IXTP01N100D
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | Depletion |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel, Depletion Mode |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 0V |
| Rds On (Max) @ Id, Vgs | 80Ohm @ 50mA, 0V |
| Vgs(th) (Max) @ Id | 4.5V @ 25µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 100 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.1W (Ta), 25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | IXTP01 |
| Gate Charge (Qg) (Max) @ Vgs | 5.8 nC @ 5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | IXTP02N120P | IXTP02N50D | IXTP05N100 | IXTP05N100M |
| Manufacturer | Littelfuse Inc. | IXYS | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 1200V 200MA TO220AB | MOSFET N-CH 500V 200MA TO220AB | MOSFET N-CH 1000V 750MA TO220AB | MOSFET N-CH 1000V 700MA TO220AB |
| Series | Polar | Depletion | - | - |
| Packaging | Tube | Tube | Tube | Tube |
