Product CatalogPart Number
IXTP12N50PM
Manufacturer
Littelfuse Inc.Description
MOSFET N-CH 500V 6A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
13,861 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXTP12N50PM
IXTP12N50PM
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 500 V 6A (Tc) 50W (Tc) Through Hole TO-220-3
Quick Inquiry
IXTP12N50PM
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | Polar |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1830 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | IXTP12 |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | IXTP12N50P | IXTP100N04T2 | IXTP100N15X4 | IXTP102N15T |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 500V 12A TO220AB | MOSFET N-CH 40V 100A TO220AB | MOSFET N-CH 150V 100A TO220 | MOSFET N-CH 150V 102A TO-220 |
| Series | Polar | TrenchT2™ | Ultra X4 | Trench |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IXTP100N04T2
Littelfuse Inc.
IXTP100N15X4
Littelfuse Inc.
IXTP102N15T
Littelfuse Inc.
IXTP10N60P
Littelfuse Inc.
IXTP10N60PM
IXYS
IXTP10P15T
Littelfuse Inc.
IXTP10P50P
Littelfuse Inc.
IXTP110N055P
IXYS
IXTP110N055T
IXYS
IXTP110N055T2
Littelfuse Inc.
IXTP110N12T2
IXYS

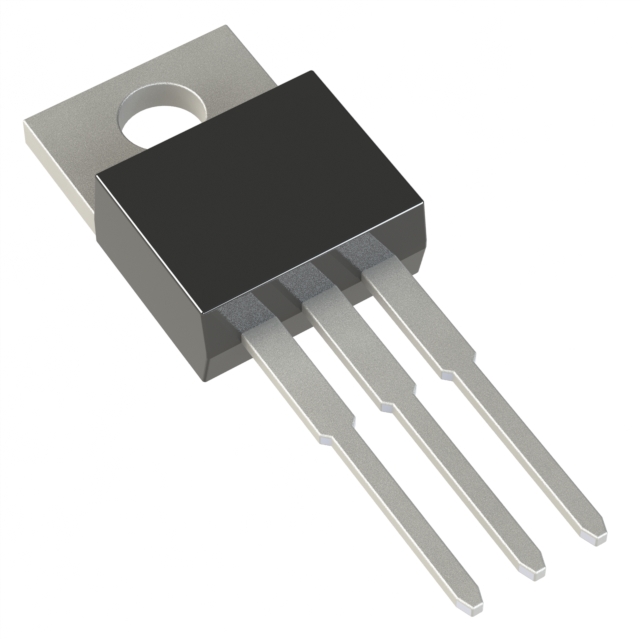

IXTP120N04T2
Littelfuse Inc.
IXTP120N075T2
Littelfuse Inc.
IXTP120N20X4
Littelfuse Inc.
IXTP120P065T
Littelfuse Inc.
IXTP12N50P
Littelfuse Inc.

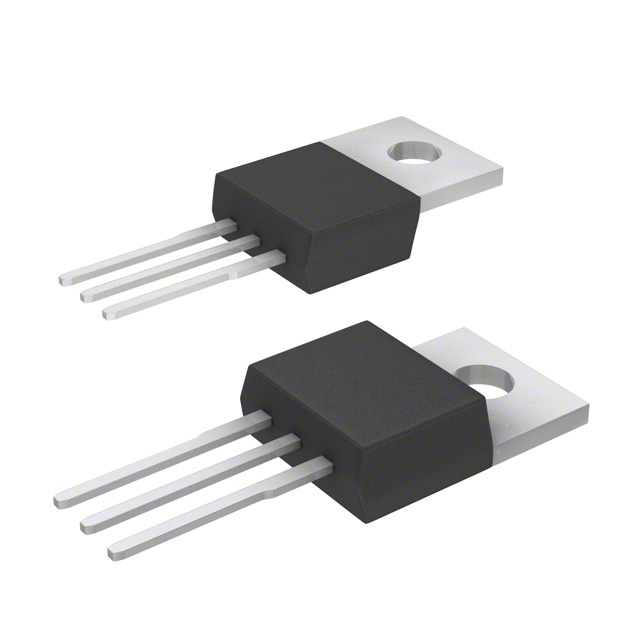

IXTP12N65X2
