IXYA20N120B4HV
lmages are for reference only.Payment Methods
Delivery Services

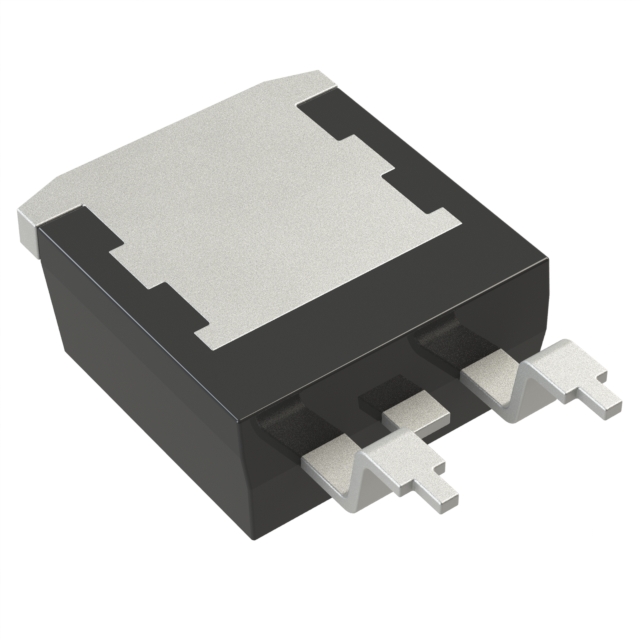

IGBT PT 1200 V 76 A 375 W Surface Mount TO-263HV
IXYA20N120B4HV
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | GenX4™, XPT™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 76 A |
| Current - Collector Pulsed (Icm) | 130 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 20A |
| Power - Max | 375 W |
| Switching Energy | 3.9mJ (on), 1.6mJ (off) |
| Input Type | Standard |
| Gate Charge | 44 nC |
| Td (on/off) @ 25°C | 15ns/200ns |
| Test Condition | 960mV, 20A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263HV |
| Reverse Recovery Time (trr) | 47 ns |
| Base Product Number | IXYA20 |
| Product Attribute |  |
 |
 |
 |
| Part Number | IXYA20N120A4HV | IXYA20N120C3HV | IXYA20N120C3HV-TRL | IXYA20N120C4HV |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISC IGBT XPT-GENX4 TO-263D2 | IGBT | IXYA20N120C3HV TRL | IGBT 1200V 20A X4 HSPEED TO263D2 |
| Series | GenX4™, XPT™ | XPT™, GenX3™ | XPT™, GenX3™ | GenX4™, XPT™ |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
