Product CatalogPart Number
J1021AS312VDC.45
Manufacturer
CIT Relay and SwitchDescription
RELAY GEN PURPOSE SPST 3A 12V
Datasheet
DatasheetPackage
-
In Stock
26,186 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
J1021AS312VDC.45
J1021AS312VDC.45
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Quick Inquiry
J1021AS312VDC.45
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | CIT Relay and Switch |
| Series | J102 |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 300VAC, 150VDC - Max |
| Load - Max Switching | 900VA, 450W |
| Coil Current | 37.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 320 Ohms |
| Base Product Number | J1021AS |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | J1021AS312VDC.20 | J1021AS312VDC.36 | J1021AS324VDC.20 | J1021AS324VDC.36 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPST 3A 12V | RELAY GEN PURPOSE SPST 3A 12V | RELAY GEN PURPOSE SPST 3A 24V | RELAY GEN PURPOSE SPST 3A 24V |
| Series | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
J1021AS312VDC.20
CIT Relay and Switch
J1021AS312VDC.36
CIT Relay and Switch
J1021AS324VDC.20
CIT Relay and Switch
J1021AS324VDC.36
CIT Relay and Switch
J1021AS324VDC.45
CIT Relay and Switch
J1021AS33VDC.20
CIT Relay and Switch
J1021AS33VDC.36
CIT Relay and Switch
J1021AS33VDC.45
CIT Relay and Switch
J1021AS35VDC.20
CIT Relay and Switch
J1021AS35VDC.36
CIT Relay and Switch
J1021AS35VDC.45
CIT Relay and Switch
J1021AS36VDC.20
CIT Relay and Switch
J1021AS36VDC.36
CIT Relay and Switch
J1021AS36VDC.45
CIT Relay and Switch

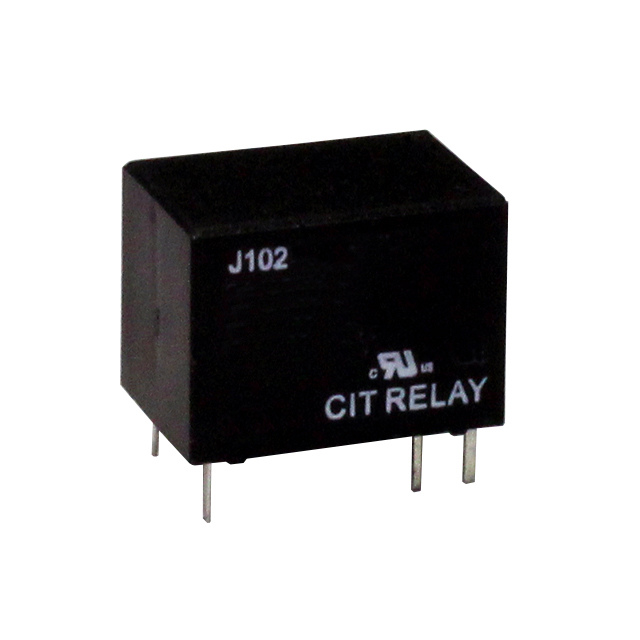

J1021AS39VDC.20
