Product CatalogPart Number
J115F11C9VDCSH.6
Manufacturer
CIT Relay and SwitchDescription
RELAY GEN PURPOSE SPDT 40A 9V
Datasheet
DatasheetPackage
-
In Stock
99,078 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
J115F11C9VDCSH.6
J115F11C9VDCSH.6

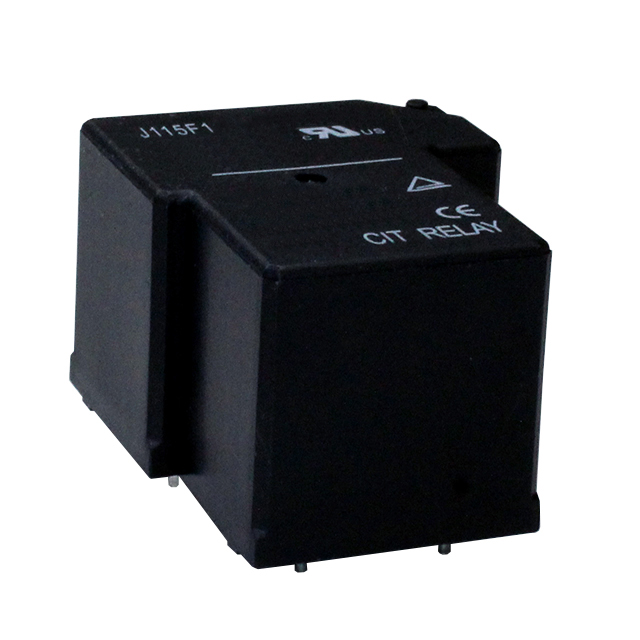

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
Quick Inquiry
J115F11C9VDCSH.6
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | CIT Relay and Switch |
| Series | J115F1 |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 277VAC, 110VDC - Max |
| Load - Max Switching | 9600VA, 1120W |
| Coil Current | 66.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 135 Ohms |
| Base Product Number | J115F11 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | J115F11C9VDCSH.9 | J115F11C9VDCS.6 | J115F11C9VDCS.9 | J115F11C9VDCS6.6 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPDT 40A 9V | RELAY GEN PURPOSE SPDT 40A 9V | RELAY GEN PURPOSE SPDT 40A 9V | RELAY GEN PURPOSE SPDT 40A 9V |
| Series | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Packaging | Tube | Tube | Tube | Tube |
