Product CatalogPart Number
J1512CF12VAC1.2D
Manufacturer
CIT Relay and SwitchDescription
RELAY GEN PURPOSE DPDT 20A 12V
Datasheet
DatasheetPackage
-
In Stock
76,331 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
J1512CF12VAC1.2D
J1512CF12VAC1.2D

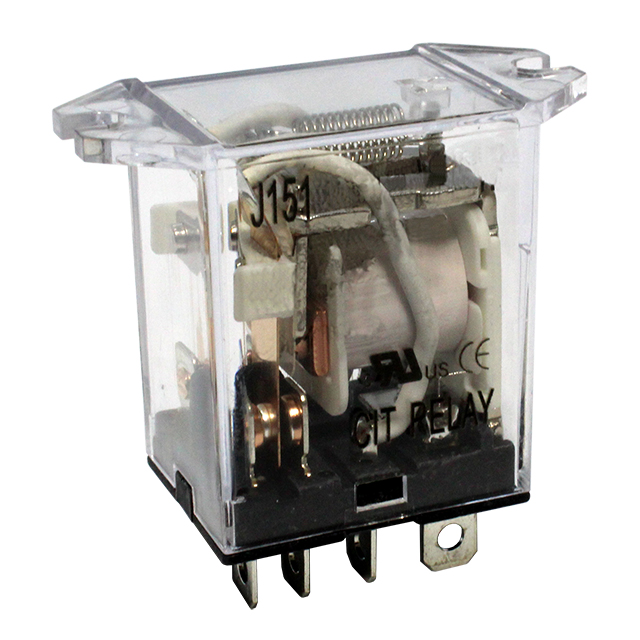

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 12VAC Coil Chassis Mount
Quick Inquiry
J1512CF12VAC1.2D
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | CIT Relay and Switch |
| Series | J151 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 300VAC - Max |
| Load - Max Switching | 6000VA |
| Coil Current | 260.9 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9.6 VAC |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 46 Ohms |
| Base Product Number | J1512C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | J1512CF12VAC1.2 | J1512CF12VDC.9 | J1512CF12VDC.9D | J1512CF110VAC1.2 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE DPDT 20A 12V | RELAY GEN PURPOSE DPDT 20A 12V | RELAY GEN PURPOSE DPDT 20A 12V | RELAY GEN PURPOSE DPDT 20A 110V |
| Series | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Packaging | Tray | Tray | Tray | Tray |
