JANS1N4109D-1/TR

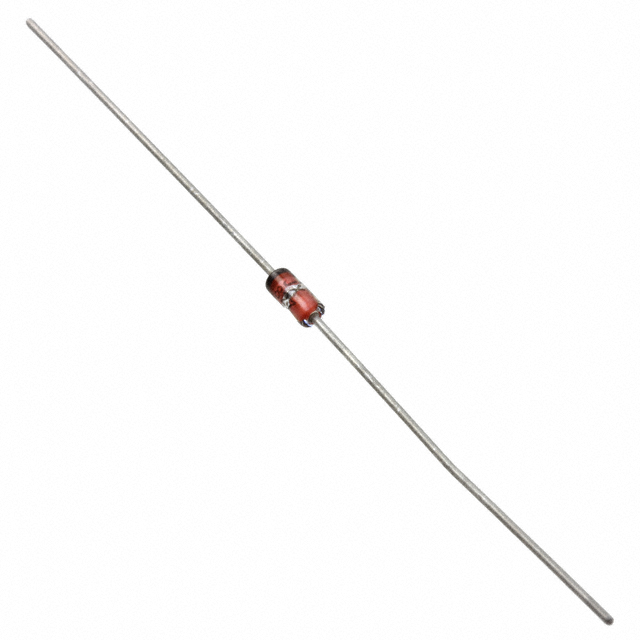

lmages are for reference only.JANS1N4109D-1/TR
DIODE ZENER 15V 500MW DO204AH
DatasheetDO-204AH, DO-35, Axial
65,642 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 15 V 500 mW ±1% Through Hole DO-204AH (DO-35)
JANS1N4109D-1/TR
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Tolerance | ±1% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 100 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 11.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Grade | Military |
| Qualification | MIL-PRF-19500/435 |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-204AH (DO-35) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | JANS1N4109D-1 | JANS1N4109-1 | JANS1N4109-1/TR | JANS1N4109C-1 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | DIODE ZENER 15V 500MW DO204AH | DIODE ZENER 15V 500MW DO204AH | DIODE ZENER 15V 500MW DO204AH | DIODE ZENER 15V 500MW DO204AH |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
