JANS1N6120AUS

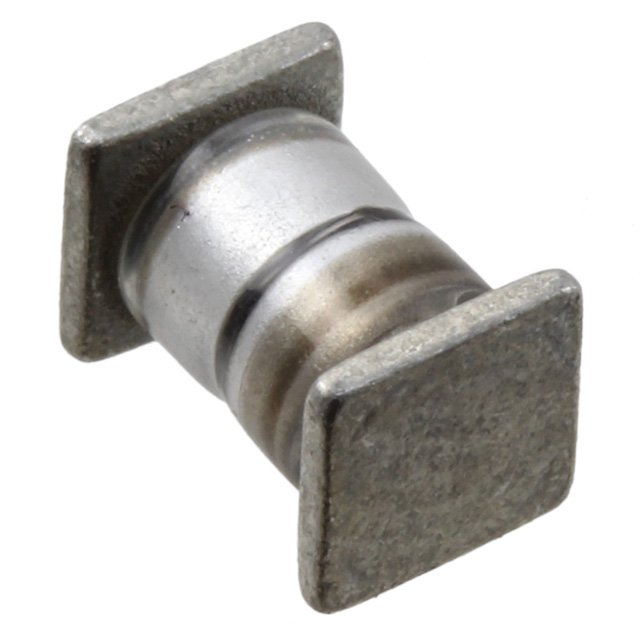

lmages are for reference only.JANS1N6120AUS
TVS DIODE 29.7VWM 53.6VC SQ-MELF
DatasheetSQ-MELF, B
63,211 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
53.6V Clamp 9.3A Ipp Tvs Diode Surface Mount B, SQ-MELF
JANS1N6120AUS
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 29.7V |
| Voltage - Breakdown (Min) | 37.1V |
| Voltage - Clamping (Max) @ Ipp | 53.6V |
| Current - Peak Pulse (10/1000µs) | 9.3A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
| Product Attribute |  |
 |
 |
 |
| Part Number | JANS1N6120AUS/TR | JANS1N6120A | JANS1N6120US | JANS1N6120US/TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | BI-DIRECTIONAL TVS | TVS DIODE 29.7VWM 53.6VC SQ-MELF | TVS DIODE 29.7VWM 53.6VC SQ-MELF | BI-DIRECTIONAL TVS |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Tape & Reel (TR) |
