Product CatalogPart Number
JANS1N6155
Manufacturer
Microchip TechnologyDescription
TVS DIODE 27.4VWM 49.9VC C AXIAL
Datasheet
DatasheetPackage
C, Axial
In Stock
29,599 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JANS1N6155
JANS1N6155
lmages are for reference only.Payment Methods
Delivery Services
49.9V Clamp 30.1A Ipp Tvs Diode Through Hole C, Axial
Quick Inquiry
JANS1N6155
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 27.4V |
| Voltage - Breakdown (Min) | 34.2V |
| Voltage - Clamping (Max) @ Ipp | 49.9V |
| Current - Peak Pulse (10/1000µs) | 30.1A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | C, Axial |
| Supplier Device Package | C, Axial |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
Parts with Similar Specifications
| Product Attribute | |
|
|
 |
| Part Number | JANS1N6150 | JANS1N6150A | JANS1N6150AUS | JANS1N6150AUS/TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | TVS DIODE 16.7VWM 30.5VC C AXIAL | TVS DIODE 16.7VWM 30.5VC C AXIAL | TVS DIODE 16.7VWM 30.5VC SQ-MELF | BI-DIRECTIONAL TVS |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

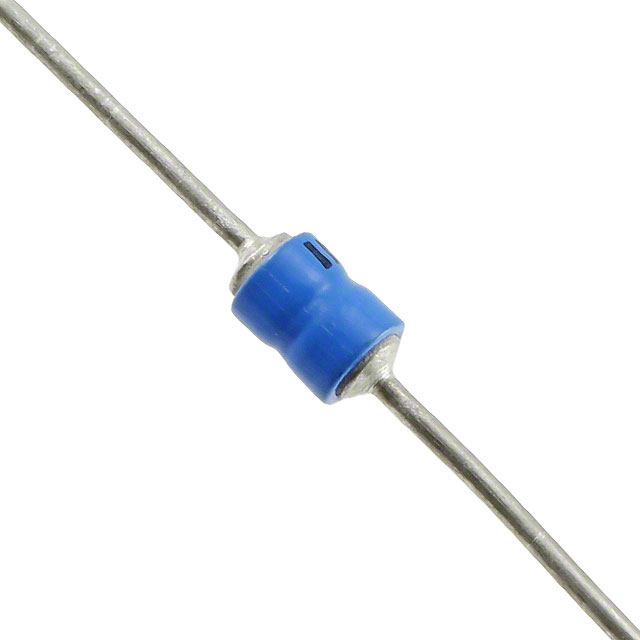

JANS1N6103
Microchip Technology
JANS1N6103A
Microchip Technology

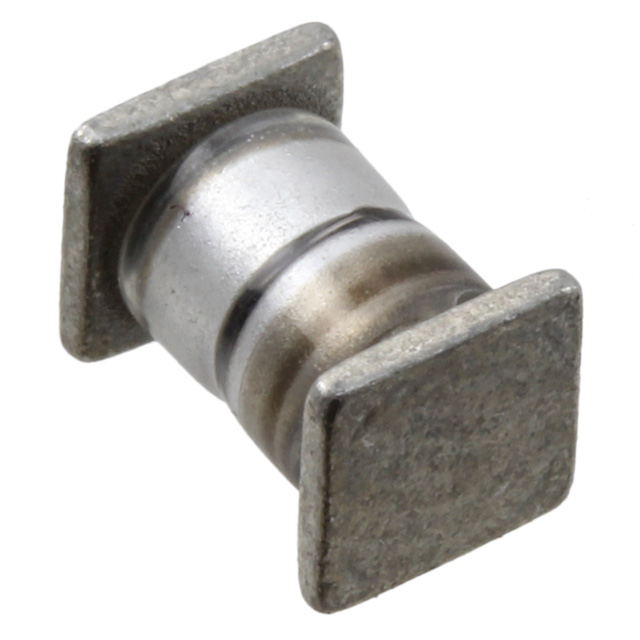

JANS1N6103AUS
