JANTX1N5554US/TR
Manufacturer
Microchip TechnologyDescription
DIODE GEN PURP 3A B SQ-MELF
Datasheet
DatasheetPackage
SQ-MELF, B
In Stock
80,214 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JANTX1N5554US/TR
JANTX1N5554US/TR
lmages are for reference only.Payment Methods
Delivery Services
Diode 3A Surface Mount B, SQ-MELF
Quick Inquiry
JANTX1N5554US/TR
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | - |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 9 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs |
| Current - Reverse Leakage @ Vr | - |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | - |
| Grade | Military |
| Qualification | MIL-PRF-19500/420 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

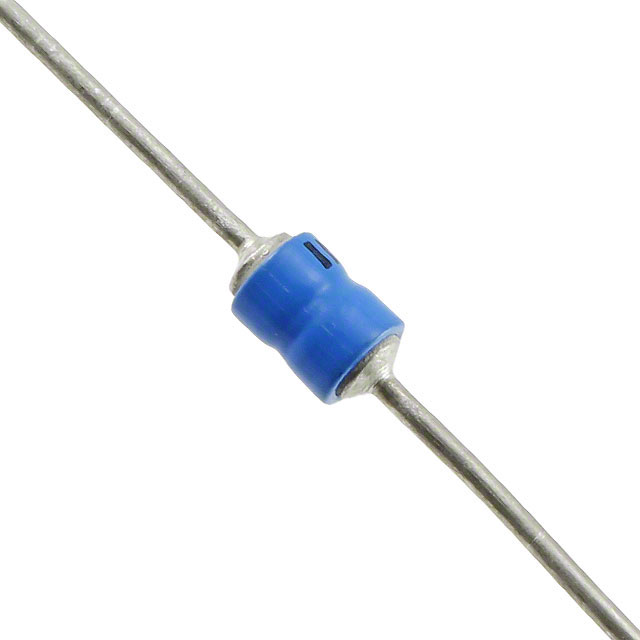

| Part Number | JANTX1N5554US | JANTX1N5550 | JANTX1N5550/TR | JANTX1N5550US |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | DIODE GEN PURP 3A B SQ-MELF | DIODE GEN PURP 200V 5A AXIAL | DIODE GEN PURP 200V 5A | DIODE GEN PURP 200V 5A B SQ-MELF |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products
JANTX1N1184
Microchip Technology
JANTX1N1184R
Microchip Technology
JANTX1N1186
Microchip Technology
JANTX1N1186R
Microchip Technology
JANTX1N1188
Microchip Technology
JANTX1N1188R
Microchip Technology
JANTX1N1190
Microchip Technology
JANTX1N1190R
Microchip Technology

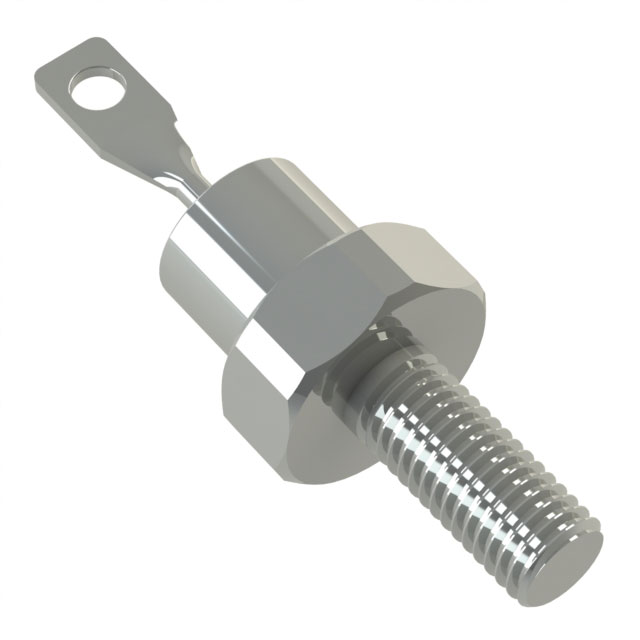

JANTX1N1202A
