JANTX1N6046A

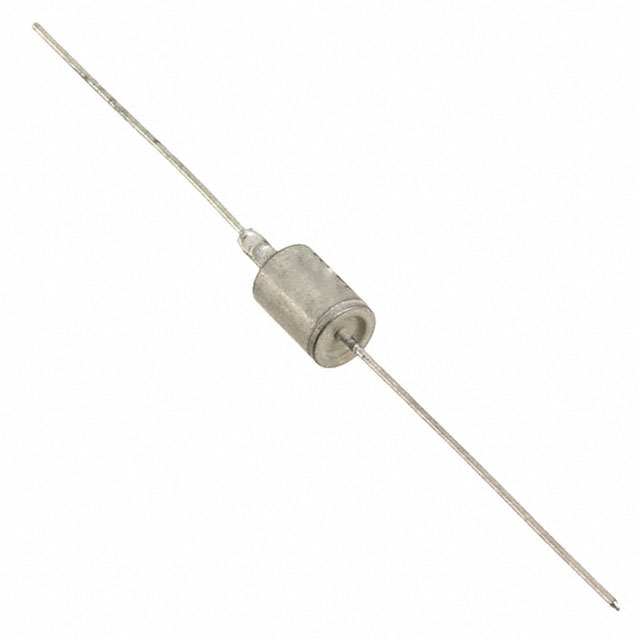

lmages are for reference only.JANTX1N6046A
TVS DIODE 17VWM 27.7VC DO13
DatasheetDO-202AA, DO-13, Axial
52,941 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27.7V Clamp 54A Ipp Tvs Diode Through Hole DO-13 (DO-202AA)
JANTX1N6046A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 17V |
| Voltage - Breakdown (Min) | 19V |
| Voltage - Clamping (Max) @ Ipp | 27.7V |
| Current - Peak Pulse (10/1000µs) | 54A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-202AA, DO-13, Axial |
| Supplier Device Package | DO-13 (DO-202AA) |
| Base Product Number | 1N6046 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500/507 |
| Product Attribute |  |
 |
 |
 |
| Part Number | JANTX1N6046A/TR | JANTX1N6036A | JANTX1N6036A/TR | JANTX1N6037A |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | BI-DIRECTIONAL TVS | TVS DIODE 6VWM 11.3VC DO13 | TVS DIODE 6VWM 11.3VC DO13 | TVS DIODE 7VWM 12.1VC DO13 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
