Product CatalogPart Number

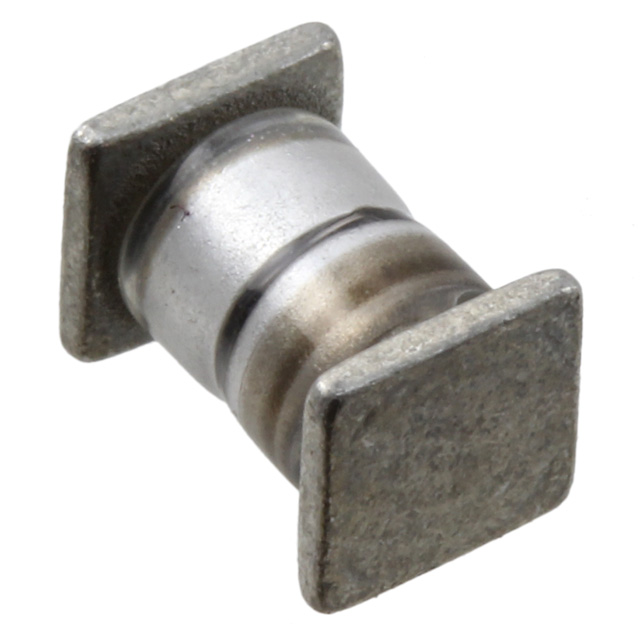

JANTXV1N6344CUS
Manufacturer
Microchip TechnologyDescription
DIODE ZENER 68V 500MW SQ-MELF
Datasheet
DatasheetPackage
SQ-MELF, B
In Stock
65,095 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JANTXV1N6344CUS
JANTXV1N6344CUS
lmages are for reference only.Payment Methods
Delivery Services
Zener Diode 68 V 500 mW ±2% Surface Mount B, SQ-MELF
Quick Inquiry
JANTXV1N6344CUS
Specifications
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Voltage - Zener (Nom) (Vz) | 68 V |
| Tolerance | ±2% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 155 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 52 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Grade | Military |
| Qualification | MIL-PRF-19500/533 |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | JANTXV1N6344CUS/TR | JANTXV1N6344 | JANTXV1N6344C | JANTXV1N6344D |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | |||
| Description | DIODE ZENER 68V 500MW SQ-MELF | DIODE ZENER 68V 500MW DO204AH | DIODE ZENER 68V 500MW DO204AH | DIODE ZENER 68V 500MW DO204AH |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
