JANTXV2N2857
lmages are for reference only.JANTXV2N2857
RF TRANS NPN 15V 500MHZ TO72
DatasheetTO-72-3 Metal Can
89,897 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Transistor NPN 15V 40mA 500MHz 200mW Through Hole TO-72
JANTXV2N2857
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| Frequency - Transition | 500MHz |
| Noise Figure (dB Typ @ f) | 4.5dB @ 450MHz |
| Gain | 12.5dB ~ 21dB @ 450MHz |
| Power - Max | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 3mA, 1V |
| Current - Collector (Ic) (Max) | 40mA |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Grade | Military |
| Qualification | MIL-PRF-19500/343 |
| Mounting Type | Through Hole |
| Package / Case | TO-72-3 Metal Can |
| Supplier Device Package | TO-72 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

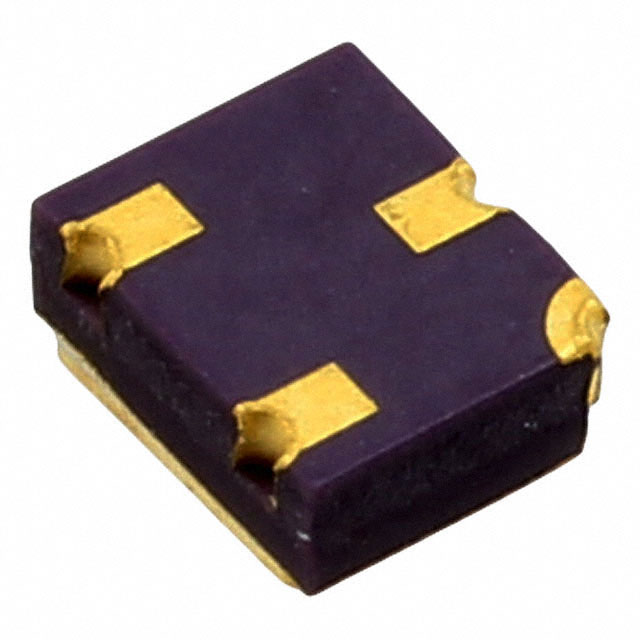

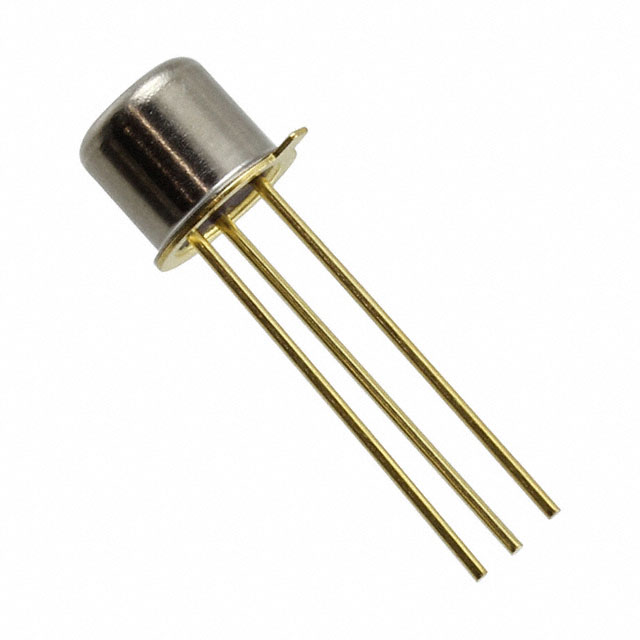

| Part Number | JANTXV2N2857UB | JANTXV2N4957UB | JANTXV2N4957 | JAN2N2857UB |
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RF TRANS NPN 15V 0.04A UB | RF TRANS PNP 30V 30MA UB | RF TRANS PNP 30V 30MA TO72 | RF TRANS NPN 15V 0.04A UB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
