JJGH0UJ200NOHPMRTR
lmages are for reference only.JJGH0UJ200NOHPMRTR
SWITCH DETECTOR SPST-NO 0.1A 12V
Datasheet-
50,887 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NO Surface Mount
JJGH0UJ200NOHPMRTR
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | JJG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | JJGH0 |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 100mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 12 V |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Ingress Protection | - |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Features | Board Guide |
| Operating Force | 100gf |
| Release Force | - |
| Operating Position | 0.136" (3.45mm) |
| Pretravel | 0.012" (0.3mm) |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -40°C ~ 85°C |
| Product Attribute |  |
 |
 |
 |

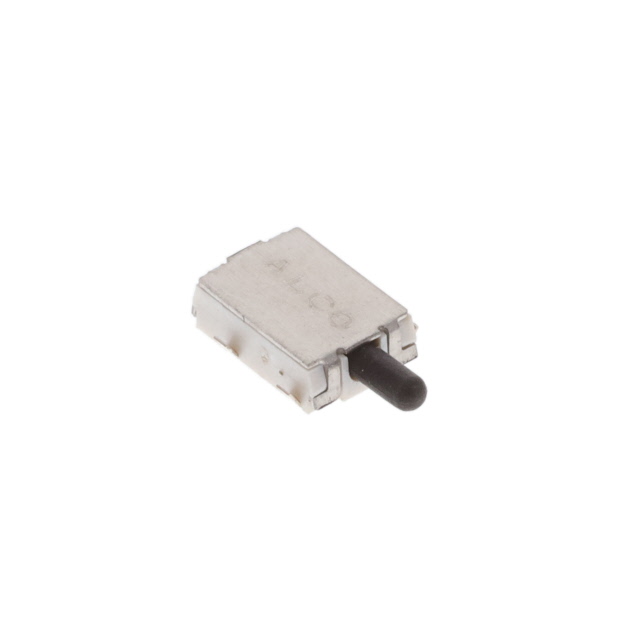

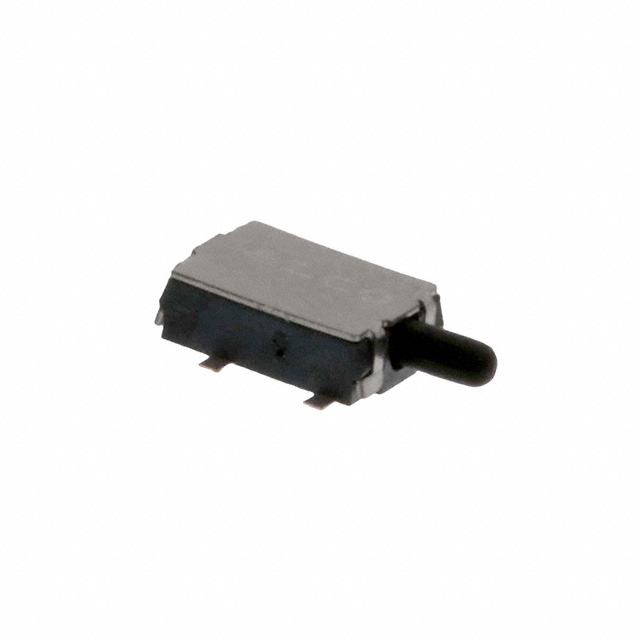

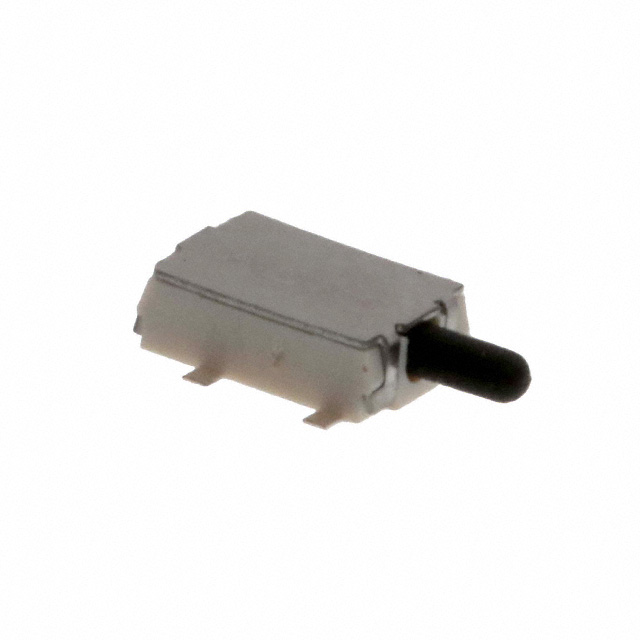

| Part Number | JJGH0UG200NCHPMRTR | JJGH0UG200NOHPMRTR | JJGH0UJ200NCHPMRTR | D4N-4A20-NPT |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | Omron Automation and Safety |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SWITCH DETECTOR SPST-NC 0.1A 12V | SWITCH DETECTOR SPST-NO 0.1A 12V | SWITCH DETECTOR SPST-NC 0.1A 12V | SWITCH SNAP ACTION |
| Series | JJG | JJG | JJG | * |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
