JLLN-150

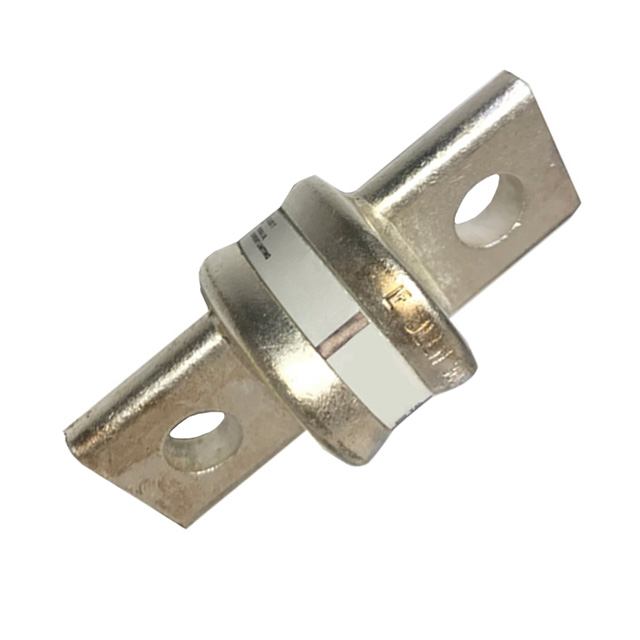

lmages are for reference only.JLLN-150
FUSE CRTRDGE 150A 300VAC/125VDC
DatasheetCartridge, Non-Standard
31,552 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150A 300 VAC 125 VDC Fuse Cartridge Bolt Mount
JLLN-150
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Riedon products by Bourns |
| Series | JLLN |
| Packaging | |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 150A |
| Voltage Rating - AC | 300 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | T |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 1.062" Dia x 0.830" L (27.00mm x 21.10mm) |
| Base Product Number | - |
| Voltage Rating - DC | 125 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | JLLN-110 | JLLN-175 | JLLN-200 | JLLN-250 |
| Manufacturer | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CRTRDGE 110A 300VAC/125VDC | FUSE CRTRDGE 175A 300VAC/125VDC | FUSE CRTRDGE 200A 300VAC/125VDC | FUSE CRTRDGE 250A 300VAC/125VDC |
| Series | JLLN | JLLN | JLLN | JLLN |
| Packaging |
