JLLN035.TXLS
lmages are for reference only.JLLN035.TXLS
FUS 160VDC F/A TELECOM 35A PCB M
DatasheetRadial Bend Cylinder
16,395 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
35A 300 VAC 160 VDC Fuse Cartridge Through Hole
JLLN035.TXLS
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POWR-GARD® JLLN |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 35A |
| Voltage Rating - AC | 300 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | R |
| Approval Agency | CE, CSA, cURus, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Radial Bend Cylinder |
| Size / Dimension | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) |
| Base Product Number | - |
| Voltage Rating - DC | 160 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
|
 |
|

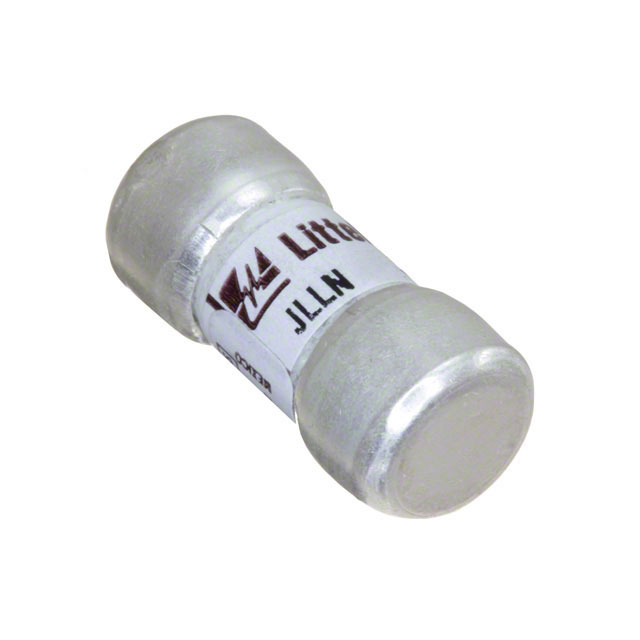

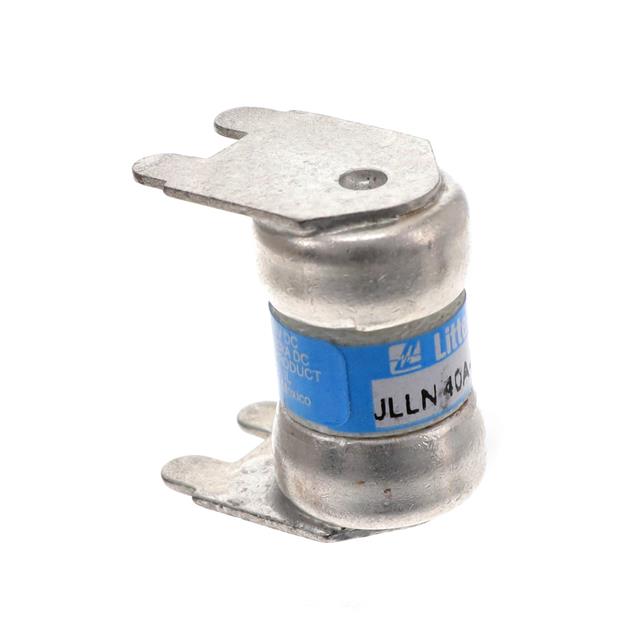

| Part Number | JLLN035.TXL | JLLN035.TXLSE | JLLN035.TXP | JLLN035.TXV |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CARTRIDGE 35A 160V BOLT | FUS 300V F/A CLASS T 35A PCB SPL | FUSE CARTRIDGE 35A 300VAC/160VDC | FUSE F/A TLCM 35A 160VDC VRT MNT |
| Series | POWR-T™ JLLN | POWR-GARD® JLLN | POWR-GARD® JLLN | POWR-T™ JLLN |
| Packaging | Bulk | Box | Box | Box |
