JMAW-26XL

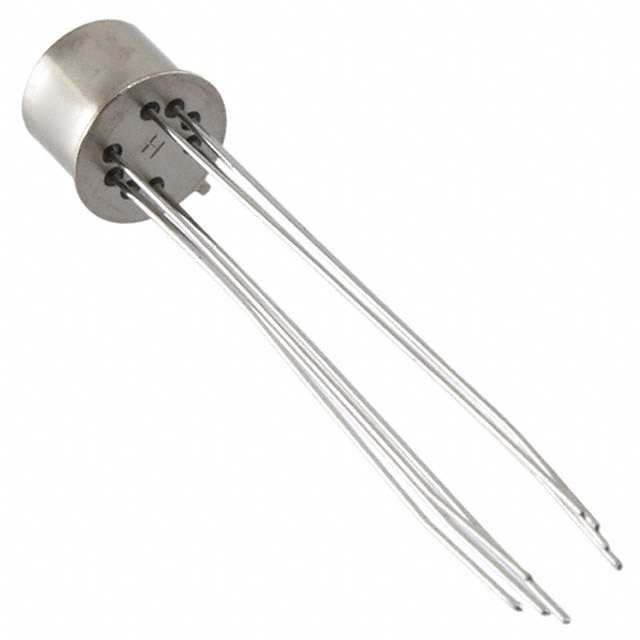

lmages are for reference only.JMAW-26XL
RELAY GEN PURPOSE DPDT 1A 26.5V
Datasheet-
64,427 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) Through Hole
JMAW-26XL
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | MA, CII |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 115VA, 28W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 14.2 VDC |
| Must Release Voltage | 1.37 VDC |
| Operate Time | 2 ms |
| Release Time | 1.5 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | Military |
| Qualification | MIL-R-39016/9 |
| Base Product Number | JMAW-26 |
| Coil Current | 17 mA |
| Coil Resistance | 1560 Ohms |
| Product Attribute |  |
 |
|
|
| Part Number | JMAW-26XM | JMAW-26XP | JMAC-12XLS | JMAC-12XM |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 1A 26.5V | RELAY GEN PURPOSE DPDT 1A 26.5V | RELAY GEN PURPOSE DPDT 1A 12V | RELAY GEN PURPOSE DPDT 1A 12V |
| Series | MA, CII | MA, CII | MAC | MAC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
