Product CatalogPart Number
JMR0324S15
Manufacturer
XP PowerDescription
DC/DC CONVERTER 15V 3.5W
Datasheet
DatasheetPackage
16-DIP Module, 6 Leads
In Stock
99,770 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JMR0324S15
JMR0324S15

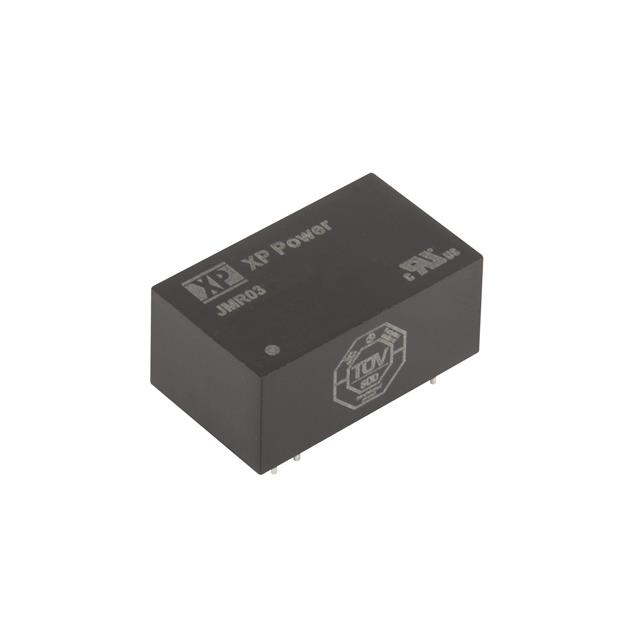

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 234mA 9V - 36V Input
Quick Inquiry
JMR0324S15
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | XP Power |
| Series | JMR03 (3.5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 234mA |
| Power (Watts) | 3.5 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 6 Leads |
| Size / Dimension | 0.96" L x 0.58" W x 0.43" H (24.4mm x 14.7mm x 10.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CB, CE, CSA, TUV, UKCA, UL |
| Standard Number | 60601-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | JMR0324S12 | JMR0324D12 | JMR0324D15 | JMR0324D15 |
| Manufacturer | XP Power | XP Power | XP Power | XP Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC/DC CONVERTER 12V 3.5W | DC/DC CONVERTER +/-12V 3.5W | DC/DC CONVERTER +/-15V 3.5W | DC/DC CONVERTER +/-15V 3.5W |
| Series | XP Power | XP Power | XP Power | XP Power |
| Packaging | Tube | Tube | Tube | Tube |
