JNCW016A0R64-18Z

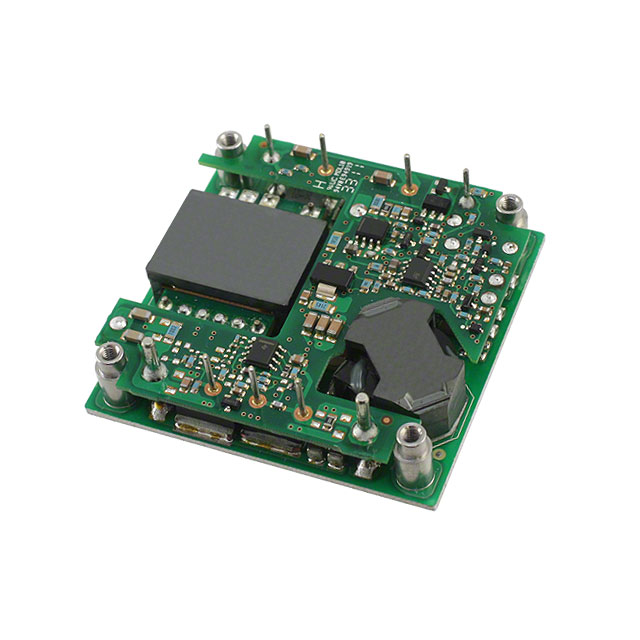

lmages are for reference only.JNCW016A0R64-18Z
DC DC CONVERTER 28V 448W
Datasheet9-DIP Module, 1/2 Brick
55,537 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 28V 16A 36V - 75V Input
JNCW016A0R64-18Z
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | ORCA™ |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16A |
| Power (Watts) | 448 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Size / Dimension | 2.39" L x 2.27" W x 0.50" H (60.7mm x 57.7mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | JNCW016 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
|
| Part Number | JNCW016A0R41-18Z | JNCW016A0R41Z | JNCW016A0R641Z | JNCW016A0R641Z |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 28V 448W | DC DC CONVERTER 28V 448W | DC DC CONVERTER 28V 448W | DC DC CONVERTER 28V 448W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tray | Tray | Bulk | Bulk |
