Product CatalogPart Number
JRCW016A0R641Z
Manufacturer
OmniOn Power™Description
DC DC CONVERTER 28V
Datasheet
DatasheetPackage
Half Brick
In Stock
65,567 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JRCW016A0R641Z
JRCW016A0R641Z

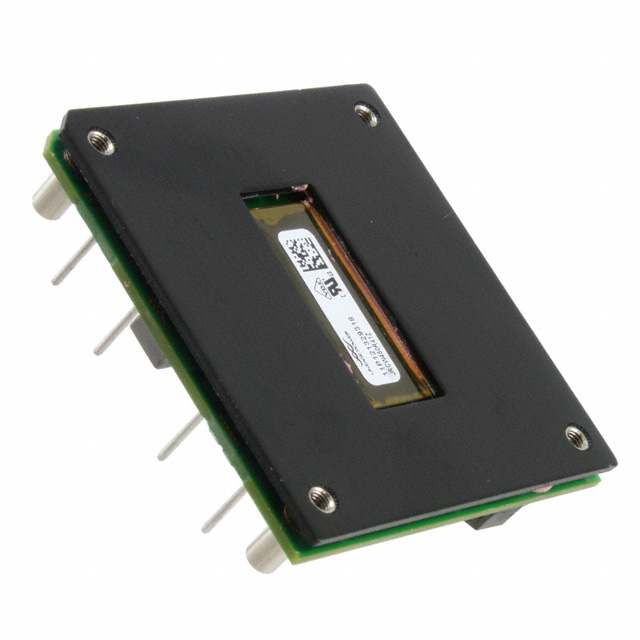

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 28V 16A 36V - 75V Input
Quick Inquiry
JRCW016A0R641Z
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | ORCA™ JRCW016A0R |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 93.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.39" L x 2.27" W x 0.50" H (60.7mm x 57.7mm x 12.8mm) |
| Supplier Device Package | Half Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | JRCW016 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | JRCW016A0R64-18Z | JRCW016A0R641-18Z | JRCW016A0R41-18TZ | JRCW016A0R41-18Z |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 28V 448W | DC DC CONVERTER 28V 448W | DC DC CONVERTER 28V 448W | DC DC CONVERTER 28V 448W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tray | Tray | Tray | Tray |
